AZURE-DN7528TM

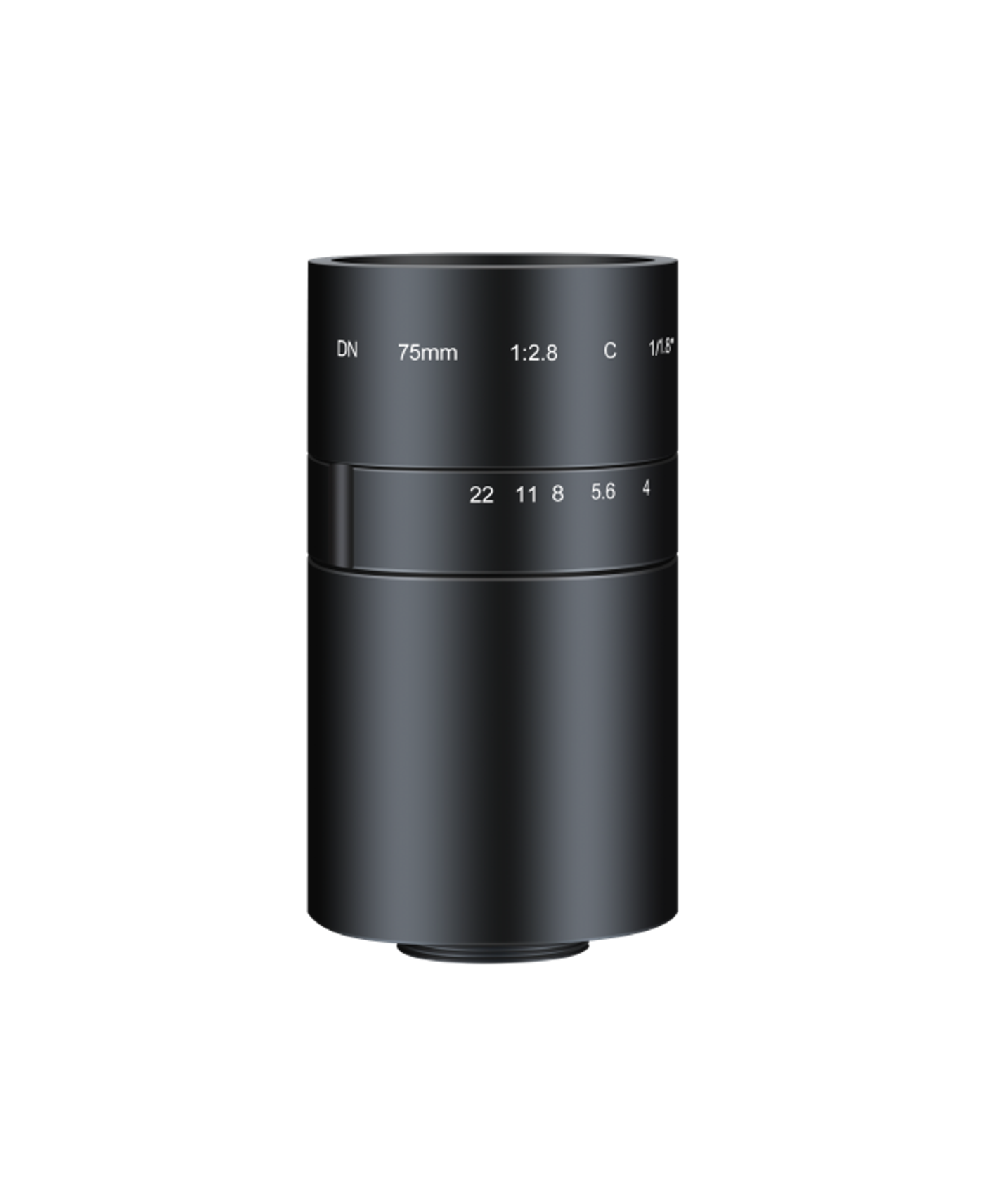

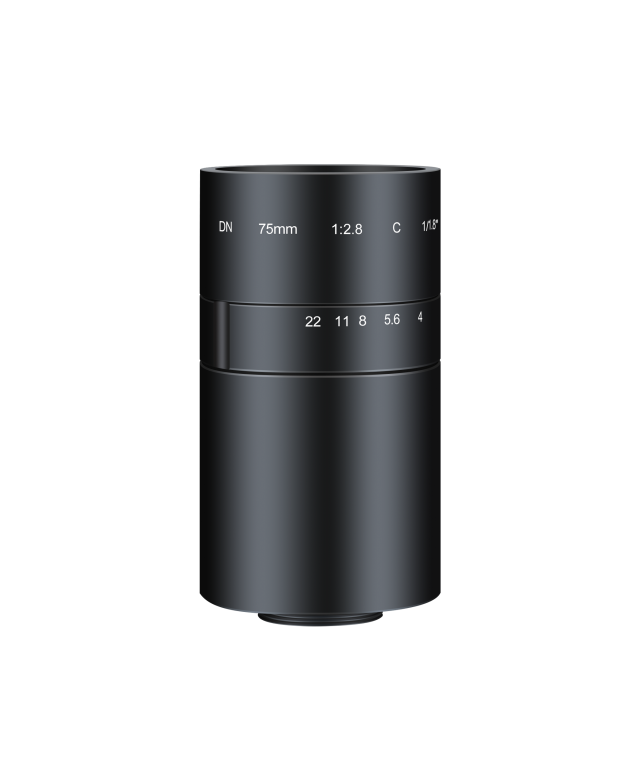

AZURE-DN7528TM 75mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
75 mmFocal Length
1/1.8"Sensor Size
200 Ip/mmResolving Power
CMount
F2.8Aperture
M43×0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-DN7528TM.
- DimensionsΦ49×85.83mm
- Weight393.5g
- Back Focal Length16.39mm
- Filter ThreadM43×0.75
- MountC
Key Specifications
| Focal Length | 75 mm |
| Sensor Size | 1/1.8" |
| Resolving Power | 200 Ip/mm |
| Mount | C |
| Aperture | F2.8 |
| Filter Thread | M43×0.75 |
| Field of View | 1/2"靶面 6.08°×3.64°×4.86°; 1/3"靶面 4.56°×2.72°×3.64° |
| Distortion | <0.32% |
| Back Focal Length | 16.39mm |
| Iris | Manual Iris |
| Dimensions | Φ49×85.83mm |
| Weight | 393.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
