AZURE-F5040MAC

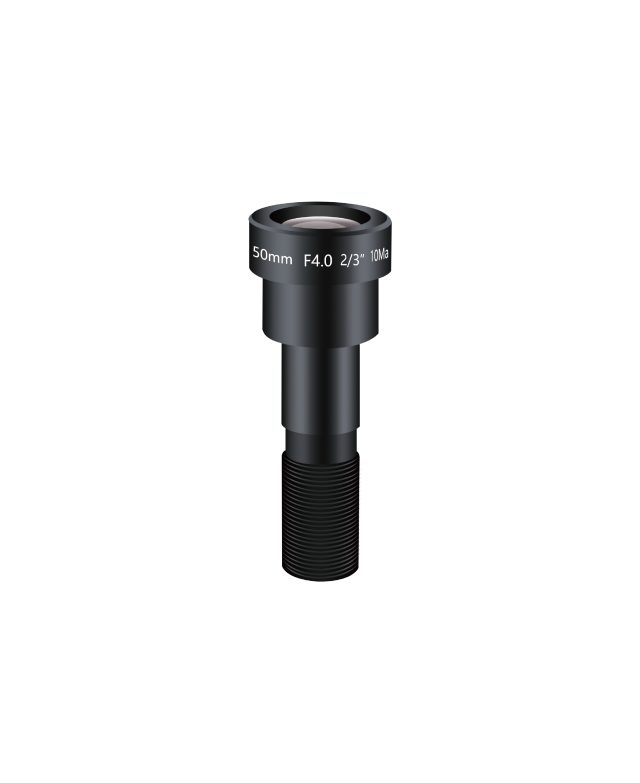

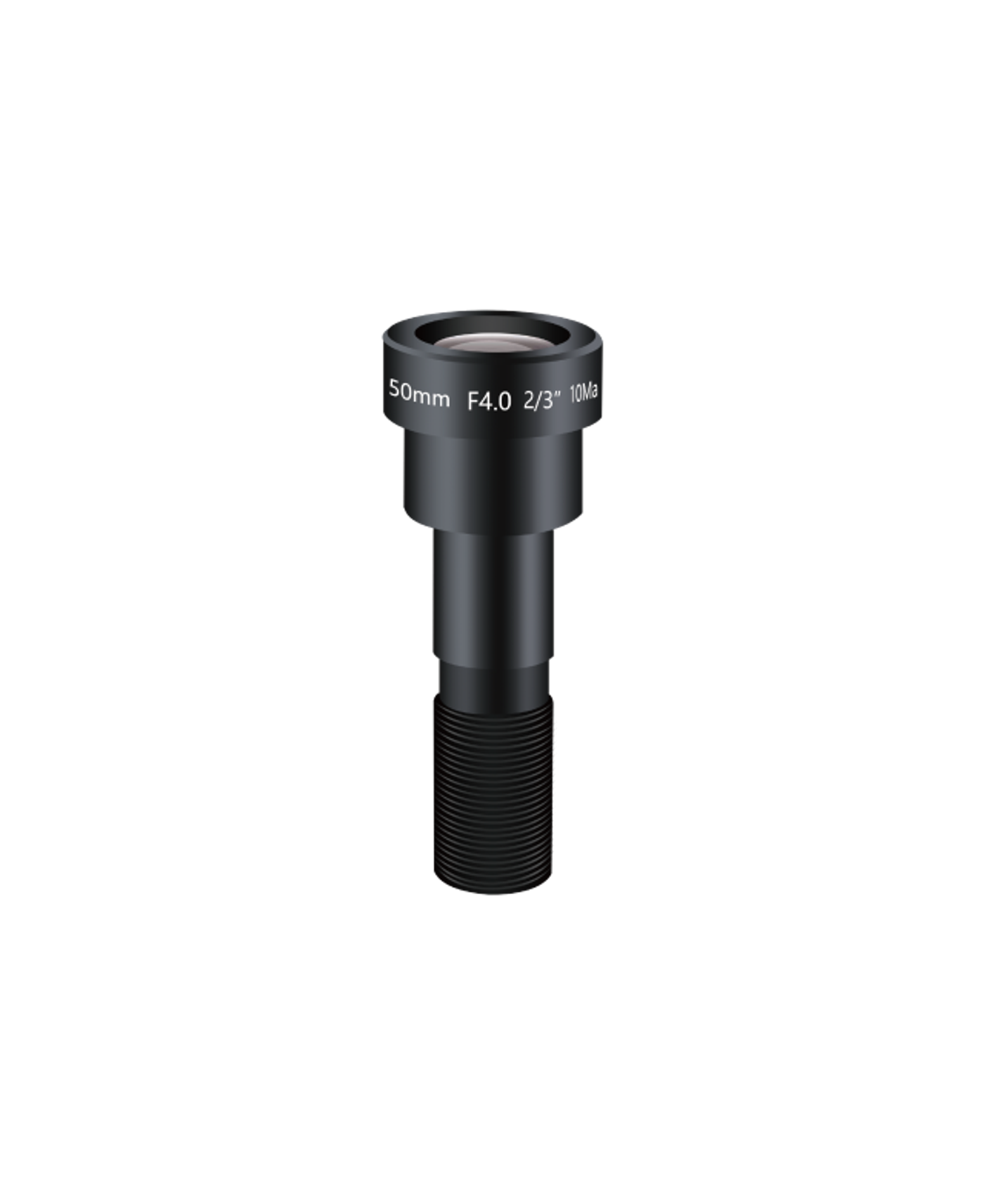

AZURE-F5040MAC 50mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
50 mmFocal Length
2/3"Sensor Size
200 lp/mmResolving Power
M12×0.5Mount
4.0Aperture
0.5~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-F5040MAC.
- DimensionsΦ22×60.9mm
- Weight21g
- Back Focal Length29.7mm
- MountM12×0.5
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3" |
| Resolving Power | 200 lp/mm |
| Mount | M12×0.5 |
| Aperture | 4.0 |
| Working Distance | 0.5~∞m |
| Distortion | <-0.25% |
| Back Focal Length | 29.7mm |
| Iris | Fixed |
| Dimensions | Φ22×60.9mm |
| Weight | 21g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-F5040MAC fits, or recommend a better match.
