AZURE-NV5014SWIR

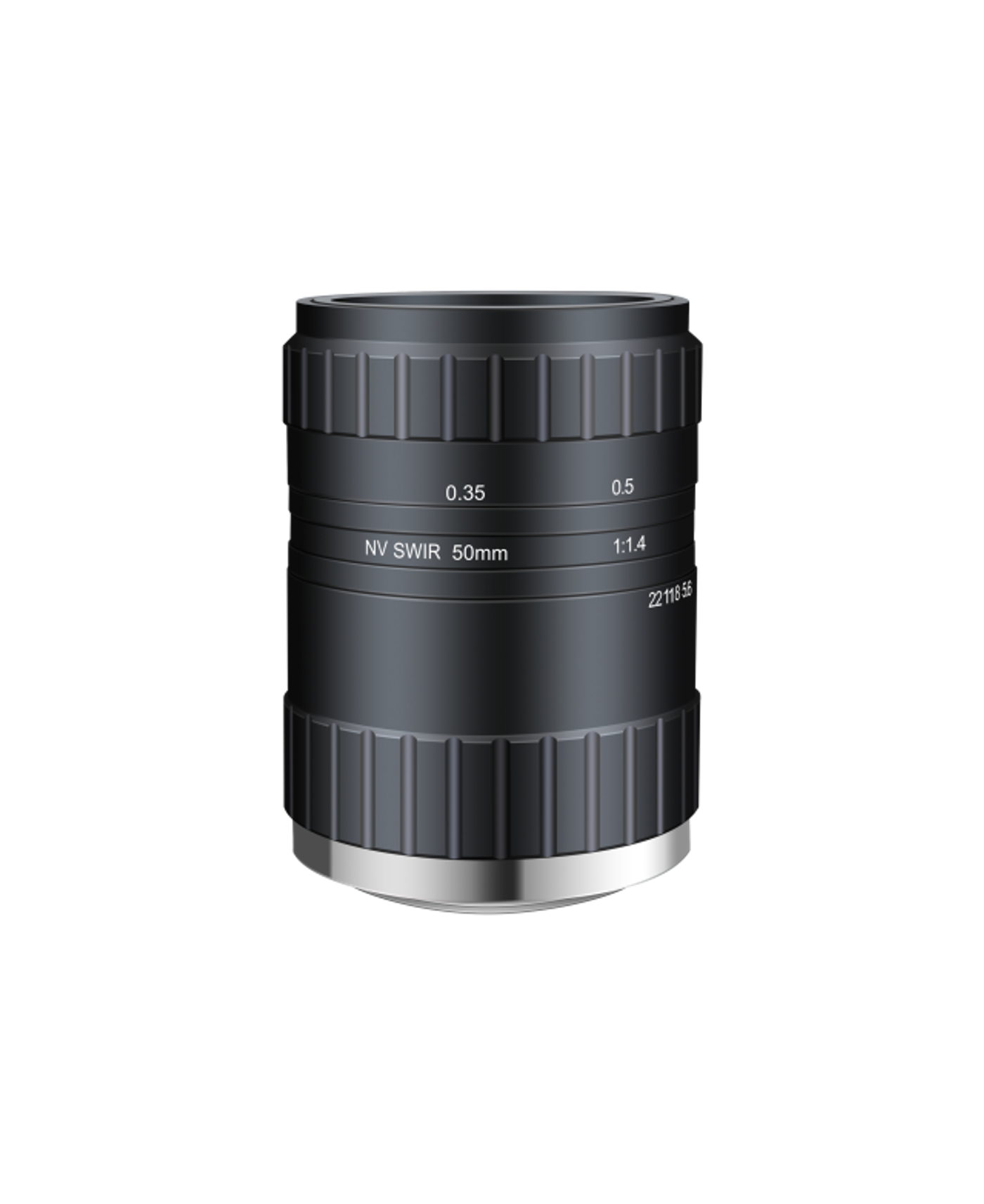

AZURE-NV5014SWIR 50mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
50 mmFocal Length
28.6mmSensor Size
90lp/mmResolving Power
M42×1Mount
F1.4Aperture
0.25m~1mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-NV5014SWIR.
- DimensionsΦ63×83.2mm
- Weight-
- Back Focal Length17.96mm
- Filter ThreadM49×0.75
- MountM42×1
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 28.6mm |
| Resolving Power | 90lp/mm |
| Mount | M42×1 |
| Aperture | F1.4 |
| Working Distance | 0.25m~1m |
| Filter Thread | M49×0.75 |
| Field of View | 4/3"靶面 23.18°×14.05°×18.66°; 1"靶面 16.64°×10.03°×13.35° |
| Distortion | ＜-0.22% |
| Back Focal Length | 17.96mm |
| Iris | Manual |
| Dimensions | Φ63×83.2mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
