SAM-SWIR25-F14-C1

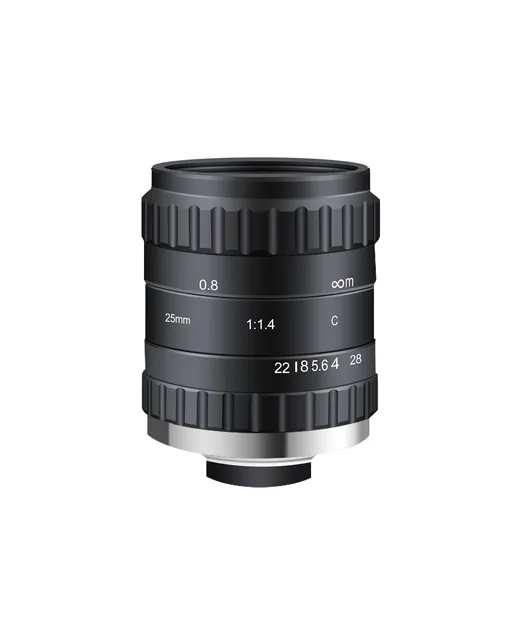

SAM-SWIR25-F14-C1 — 25mm SWIR Lens (900 - 1700 nm, 1", C-Mount)
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
1"Sensor Size
40 lp/mmResolving Power
C-MountMount
F1.4 - F22Aperture
300 mm - infWorking Distance
Dimensions
Mechanical dimensions

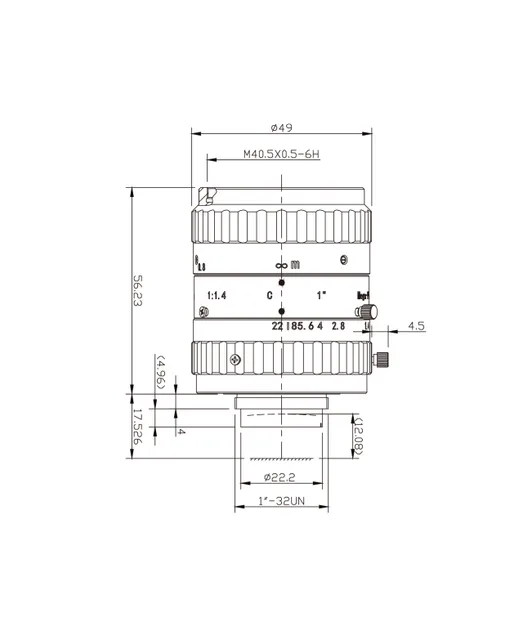

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ49 x 56.23 mm
- Weight270.1 g
- Back Focal Length12.08 mm
- Filter ThreadM40.5 x 0.5
- MountC-Mount
Product overview
SAM-SWIR25-F14-C1 (25mm SWIR Lens (900 - 1700 nm)) is listed in the Special and Custom range. Catalogue values include 1" sensor, C-Mount, distortion <-0.15%, WD 300 mm - inf, 900 - 1700 nm spectral range.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1" |
| Resolving Power | 40 lp/mm |
| Mount | C-Mount |
| Aperture | F1.4 - F22 |
| Working Distance | 300 mm - inf |
| Filter Thread | M40.5 x 0.5 |
| Spectral Range | 900 - 1700 nm |
| Field of View | 24.81° x 15.04° x 19.96° |
| Distortion | <-0.15% |
| Back Focal Length | 12.08 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ49 x 56.23 mm |
| Weight | 270.1 g |
