TD2518A

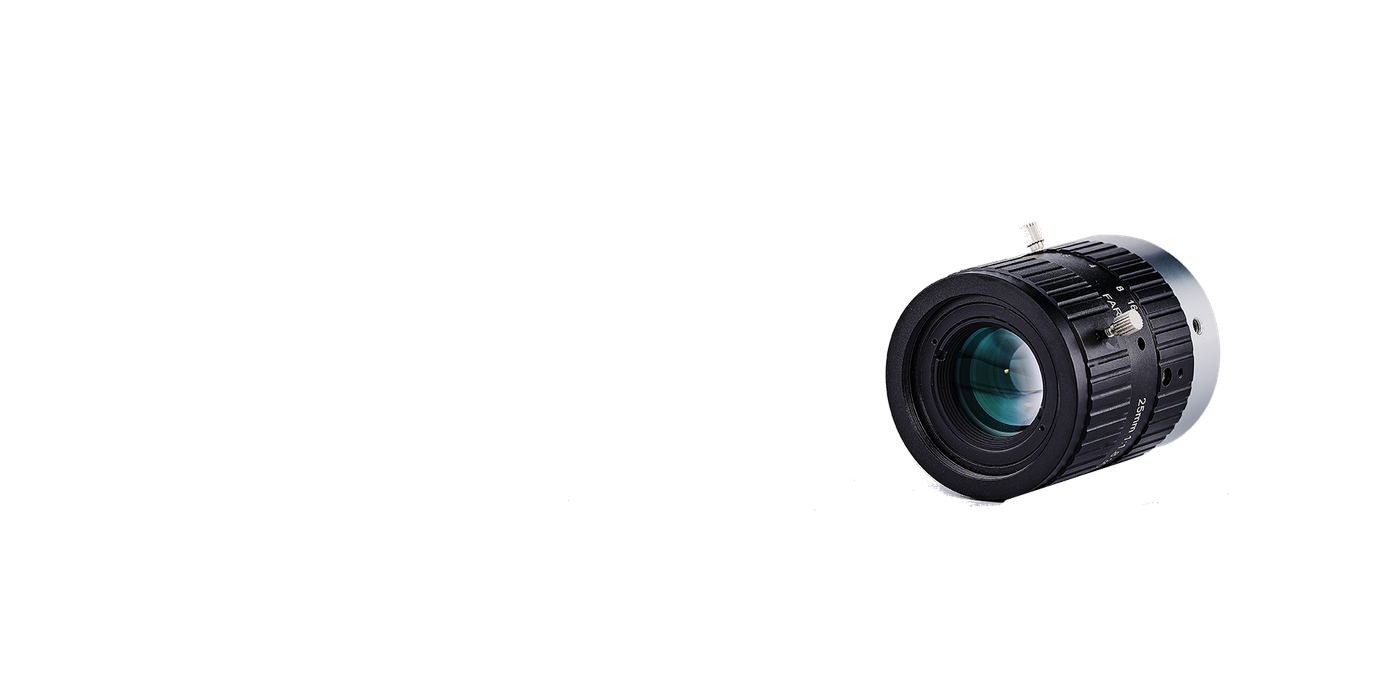

TD2518A 25mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
φ9Sensor Size
C-MountMount
1.8-16Aperture
10 - ∞Working Distance
M34×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of TD2518A.
- Dimensionsφ42.8×（52-58.5）
- Filter ThreadM34×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | φ9 |
| Mount | C-Mount |
| Aperture | 1.8-16 |
| Working Distance | 10 - ∞ |
| Filter Thread | M34×P0.5 |
| Field of View | FOV 20.4°（D） |
| Distortion | ﹤0.3% |
| Dimensions | φ42.8×（52-58.5） |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
