VI2502A

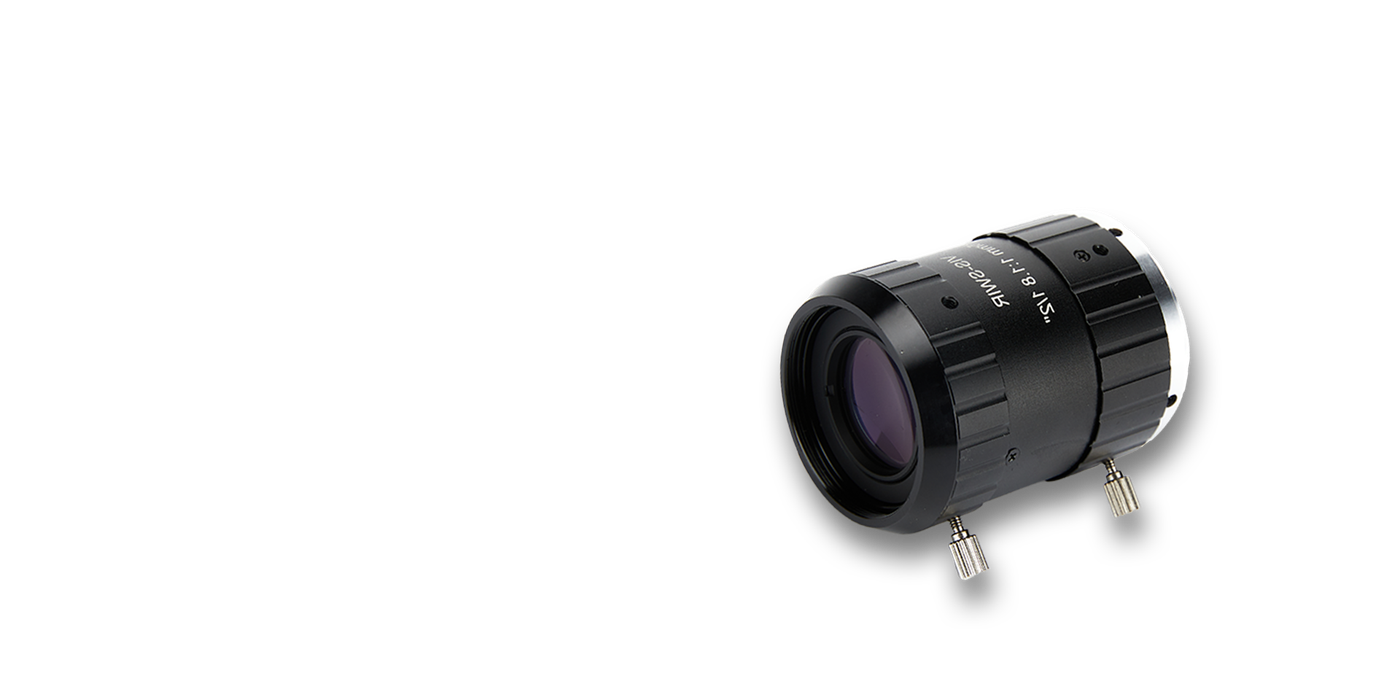

VI2502A 25mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
1/2”Sensor Size
C-MountMount
1.8-16Aperture
0.1m、0.263XMOD
M28.5×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of VI2502A.
- Dimensionsφ35×44
- Filter ThreadM28.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1/2” |
| Mount | C-Mount |
| Aperture | 1.8-16 |
| MOD | 0.1m、0.263X |
| Filter Thread | M28.5×P0.5 |
| Field of View | 1/2"视场角Angle 13.44°×10.77°; 1/4"视场角Angle 6.96°×5.52° |
| Distortion | ＜0.4% |
| Dimensions | φ35×44 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
