IR2502A

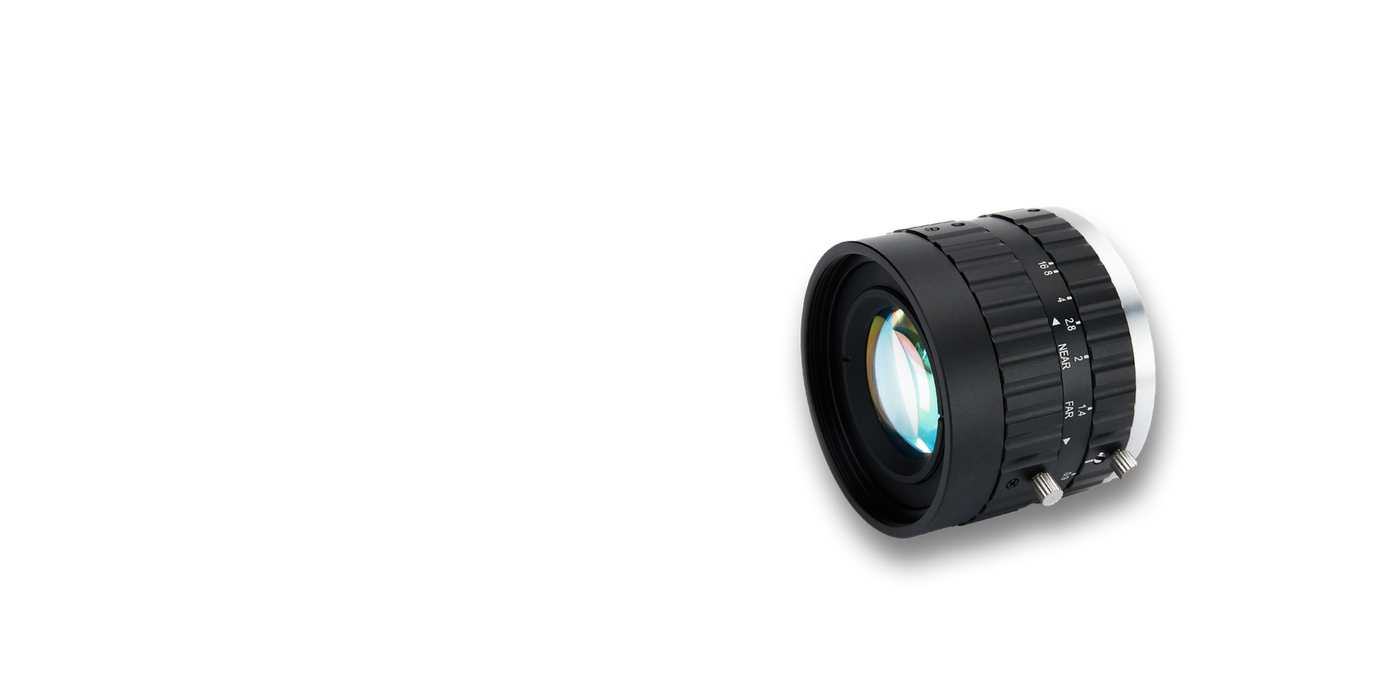

IR2502A 25mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
0.05X-0.141XMagnification
φ12.6Sensor Size
C-MountMount
0.9-16Aperture
0.2mMOD
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of IR2502A.
- Dimensionsφ50.8×39.3
- Weight161
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Magnification | 0.05X-0.141X |
| Sensor Size | φ12.6 |
| Mount | C-Mount |
| Aperture | 0.9-16 |
| MOD | 0.2m |
| Distortion | ＜0.1% |
| Dimensions | φ50.8×39.3 |
| Weight | 161 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether IR2502A fits, or recommend a better match.
