AZURE-IR0618B5M

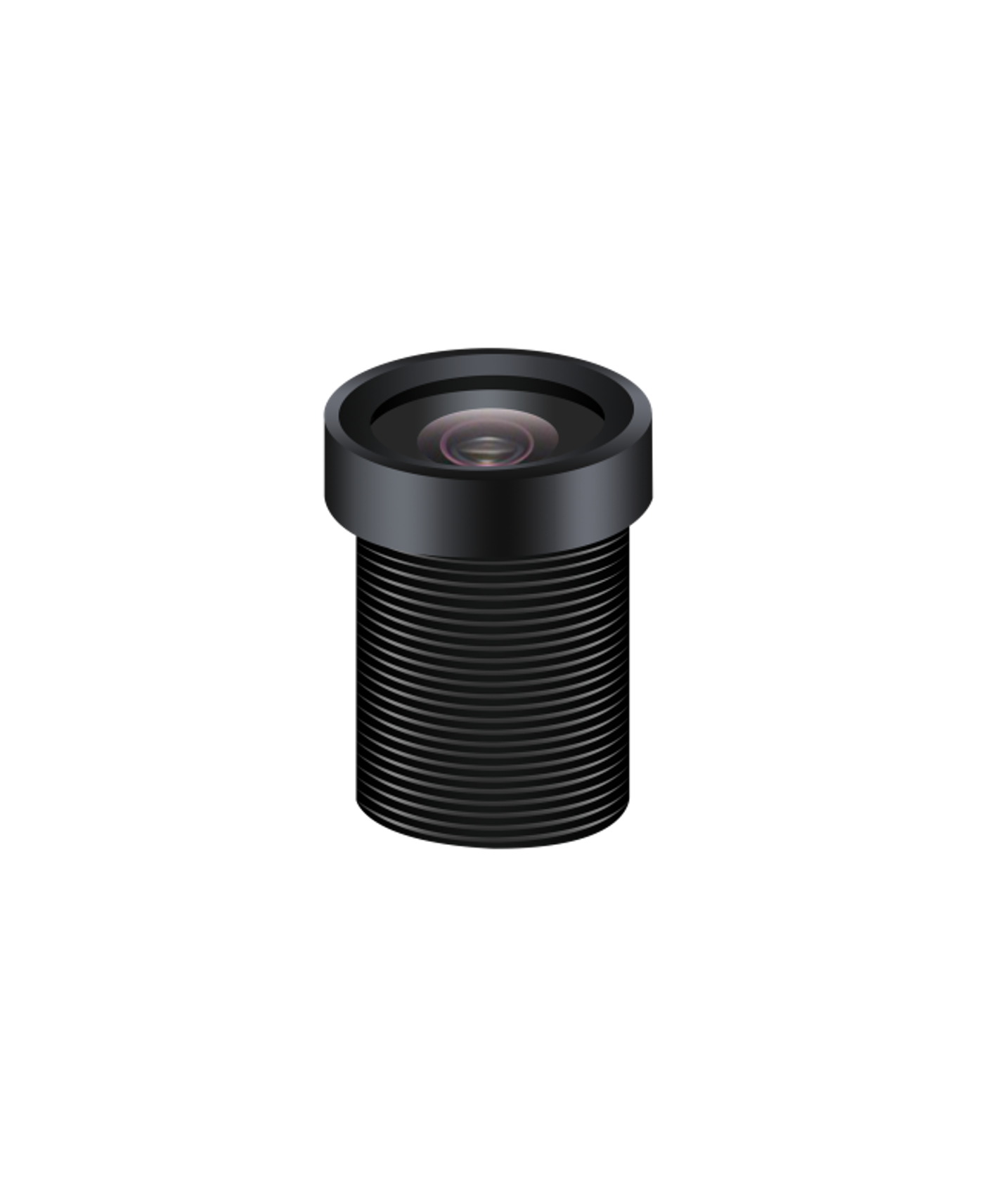

AZURE-IR0618B5M 6.0mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
6.0 mmFocal Length
1/2.5"Sensor Size
5 MPResolution
5MPResolving Power
M12×0.5Mount
1.8Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-IR0618B5M.
- DimensionsΦ14×19.1mm
- Back Focal Length9.58mm
- MountM12×0.5
Key Specifications
| Focal Length | 6.0 mm |
| Sensor Size | 1/2.5" |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | M12×0.5 |
| Aperture | 1.8 |
| Working Distance | 0.65~∞m |
| Distortion | <-20.49% |
| Back Focal Length | 9.58mm |
| Dimensions | Φ14×19.1mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-IR0618B5M fits, or recommend a better match.
