AZURE-5030UV

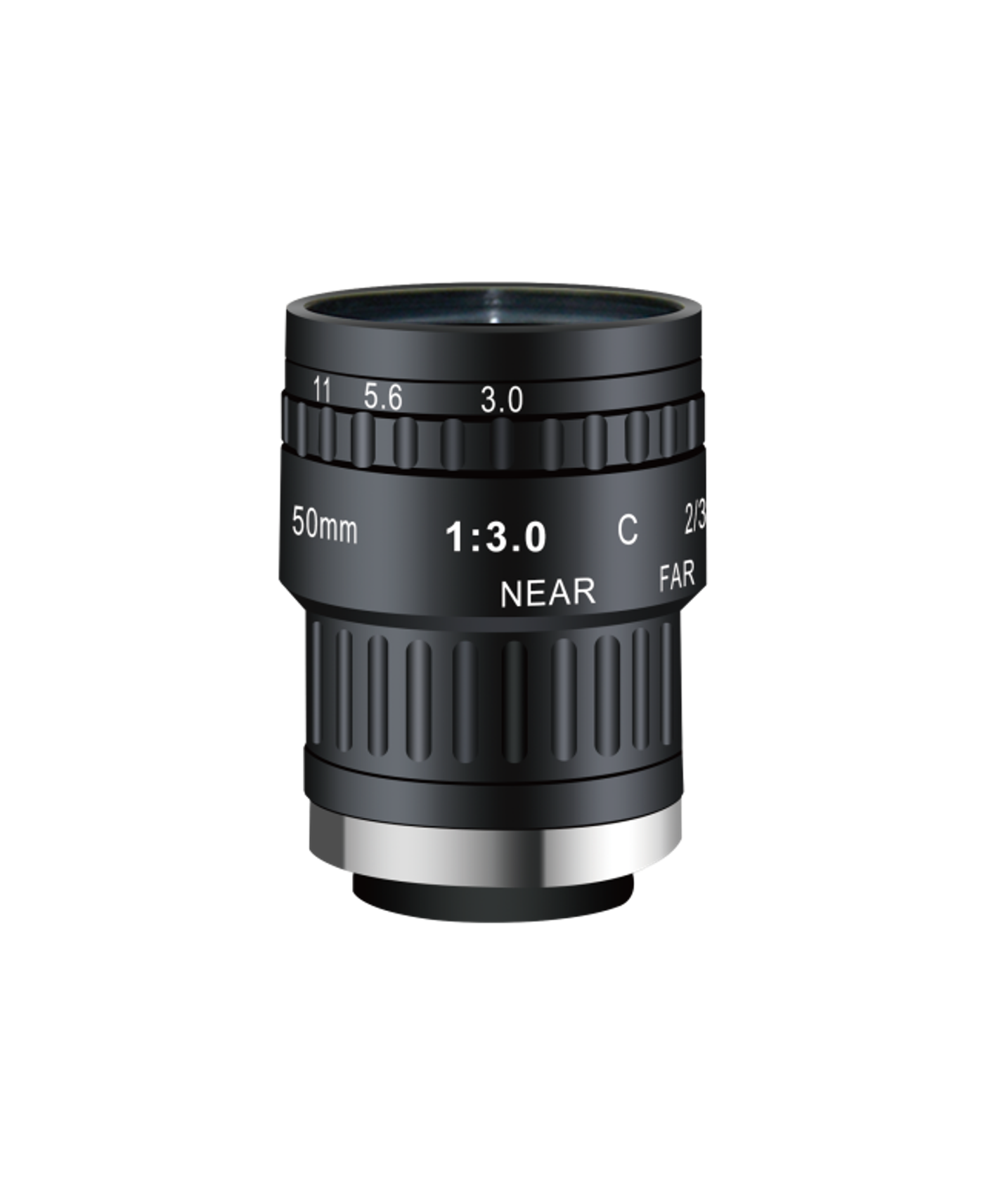

AZURE-5030UV 50mm UV Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
50 mmFocal Length
2/3”Sensor Size
100lp/mmResolving Power
CMount
F3.0~F32Aperture
0.3m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5030UV.
- DimensionsΦ37.6×49.51mm
- Weight110g
- Back Focal Length26.5mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3” |
| Resolving Power | 100lp/mm |
| Mount | C |
| Aperture | F3.0~F32 |
| Working Distance | 0.3m~∞ |
| Filter Thread | M34×0.5 |
| Field of View | 1/2"靶面 9.16°×5.5°×7.33°; 1/3"靶面 6.87°×4.12°×5.5°; 1/4"靶面 4.58°×2.75°×3.67° |
| Distortion | ＜0.1% |
| Back Focal Length | 26.5mm |
| Iris | M-Iris |
| Dimensions | Φ37.6×49.51mm |
| Weight | 110g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
