SAM-SWIR12.5-F14-C23

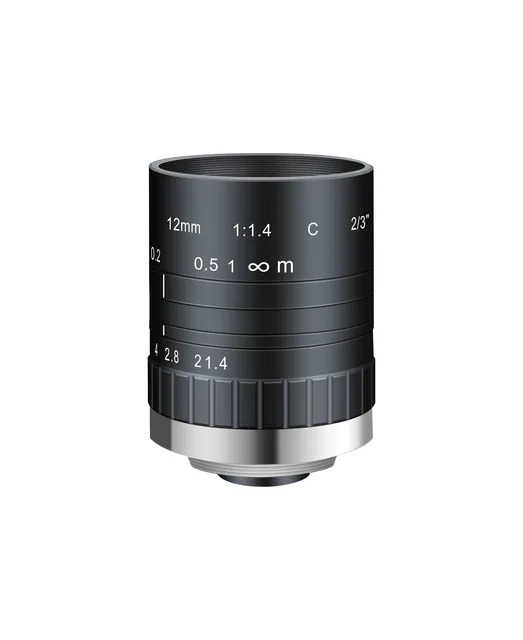

SAM-SWIR12.5-F14-C23 — 12.5mm SWIR Lens (900 - 1700 nm, 2/3", C-Mount)
UV, SWIR, S-mount, ITS and fully custom optical designs.
12.5 mmFocal Length
2/3"Sensor Size
40 lp/mmResolving Power
C-MountMount
F1.4 - F22Aperture
200 mm - infWorking Distance
Dimensions
Mechanical dimensions

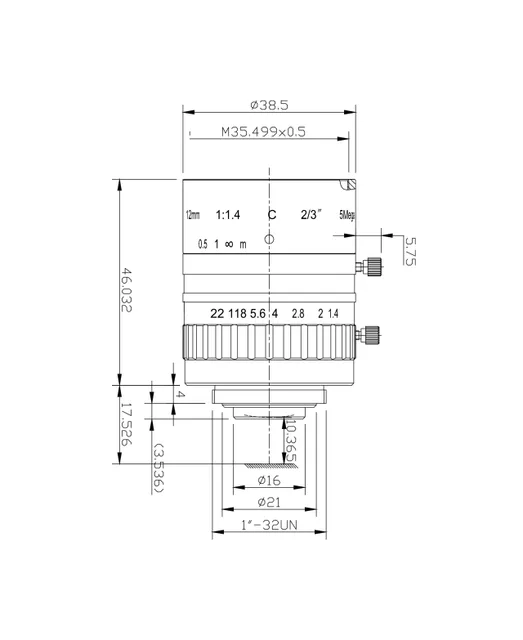

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ38.5 x 46.032 mm
- Weight150 g
- Back Focal Length10.4 mm
- Filter ThreadM35.5 x 0.5
- MountC-Mount
Product overview
SAM-SWIR12.5-F14-C23 (12.5mm SWIR Lens (900 - 1700 nm)) is listed in the Special and Custom range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.4%, WD 200 mm - inf, 900 - 1700 nm spectral range.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 12.5 mm |
| Sensor Size | 2/3" |
| Resolving Power | 40 lp/mm |
| Mount | C-Mount |
| Aperture | F1.4 - F22 |
| Working Distance | 200 mm - inf |
| Filter Thread | M35.5 x 0.5 |
| Spectral Range | 900 - 1700 nm |
| Field of View | 46.8° x 29.2° x 38.2° |
| Distortion | <-0.4% |
| Back Focal Length | 10.4 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ38.5 x 46.032 mm |
| Weight | 150 g |
