AZURE-1632ZL5M

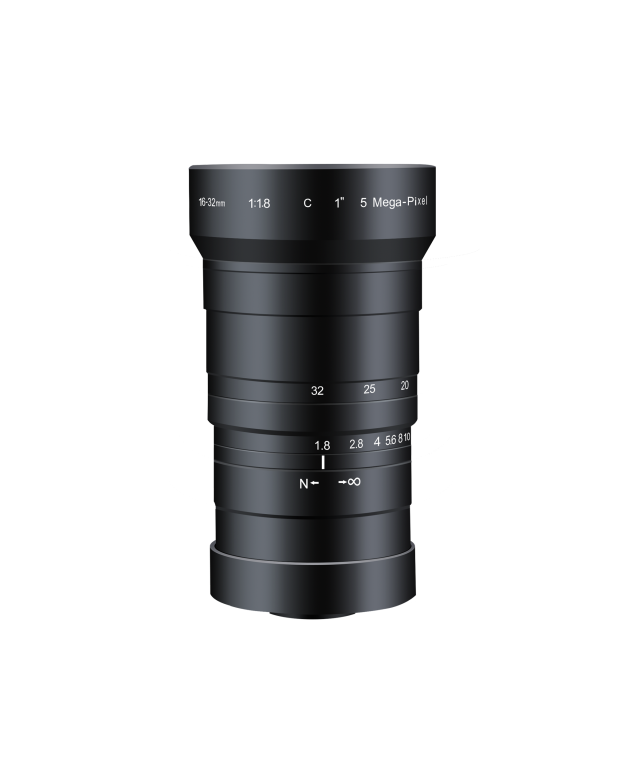

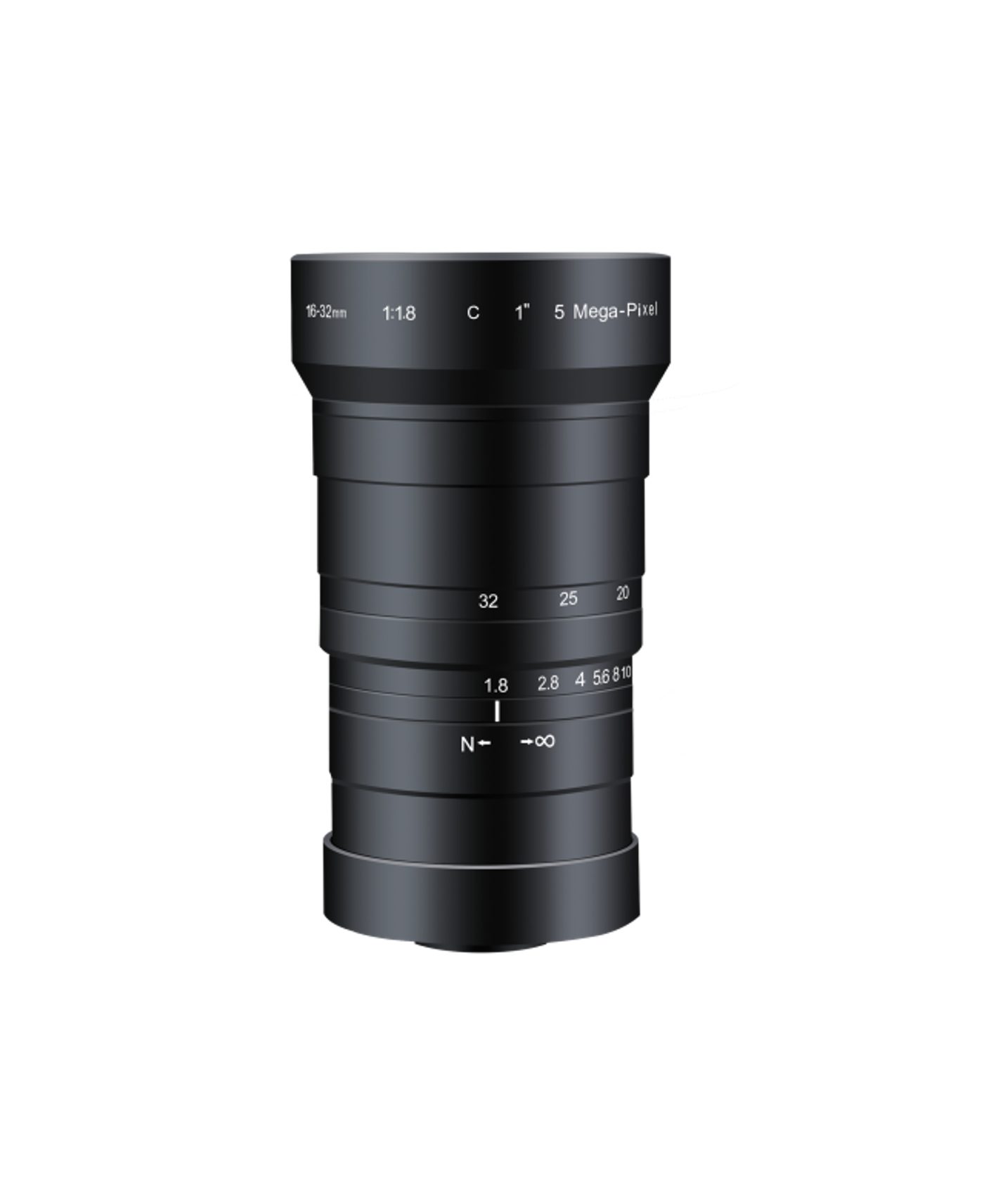

AZURE-1632ZL5M 16mm Zoom Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
16 mmFocal Length
1”Sensor Size
100lp/mmResolving Power
CMount
F1.8~F16Aperture
1.5m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1632ZL5M.
- DimensionsΦ65×113.35mm
- Weight619g
- Back Focal Length21.58mm
- Filter ThreadM62×0.75
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 1” |
| Resolving Power | 100lp/mm |
| Mount | C |
| Aperture | F1.8~F16 |
| Working Distance | 1.5m~∞ |
| Filter Thread | M62×0.75 |
| Distortion | -1.89%~1.98% |
| Back Focal Length | 21.58mm |
| Iris | M-Iris |
| Dimensions | Φ65×113.35mm |
| Weight | 619g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
