AZURE-001008XZMUV-1

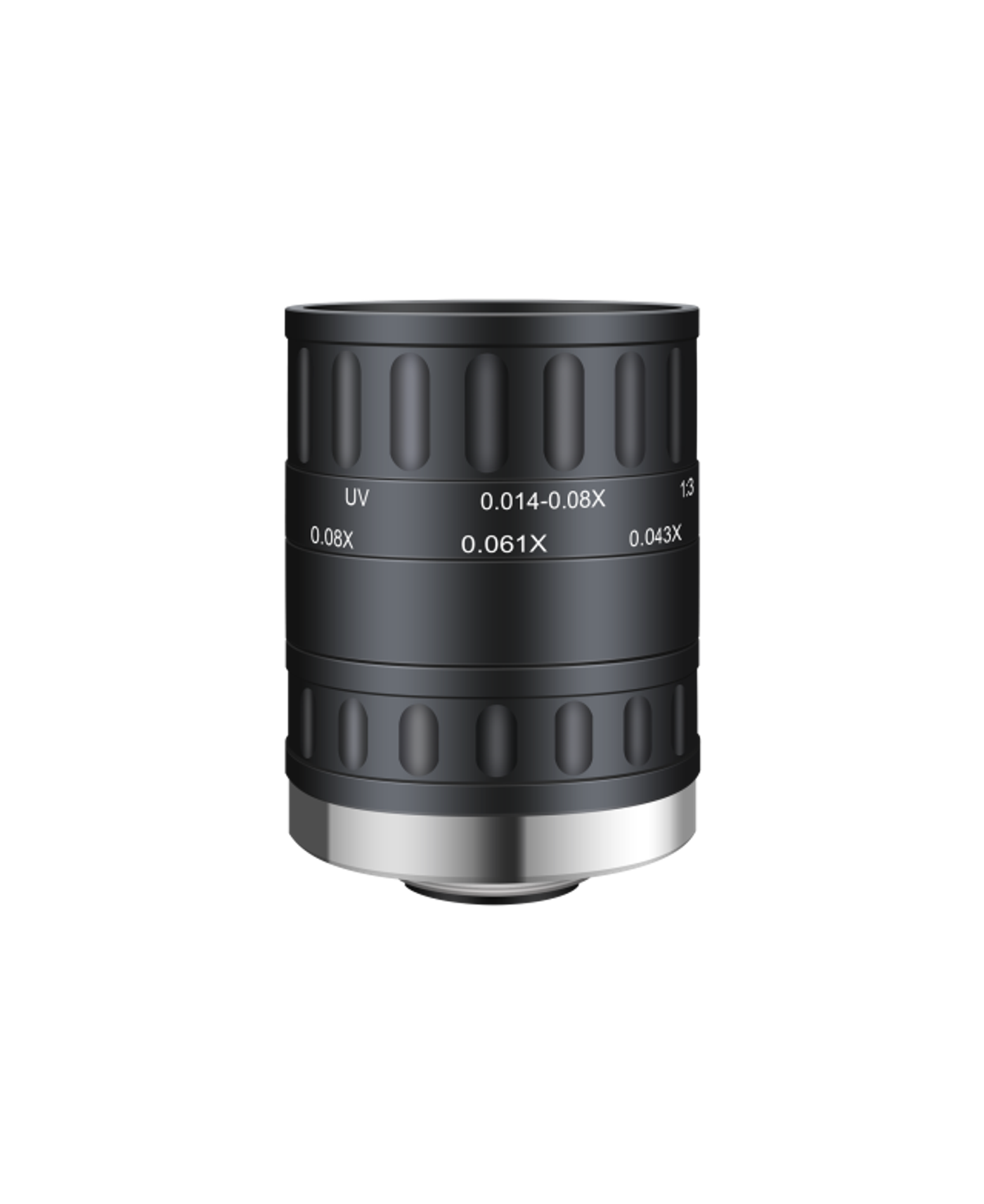

AZURE-001008XZMUV-1 15.6mm UV Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
15.6 mmFocal Length
0.014X~0.08XMagnification
2/3"Sensor Size
180 Ip/mmResolving Power
CMount
F3.0~F22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-001008XZMUV-1.
- DimensionsΦ52×66.1mm
- Weight393g
- Back Focal Length12mm
- Filter ThreadM43×0.75
- MountC
Key Specifications
| Focal Length | 15.6 mm |
| Magnification | 0.014X~0.08X |
| Sensor Size | 2/3" |
| Resolving Power | 180 Ip/mm |
| Mount | C |
| Aperture | F3.0~F22 |
| Filter Thread | M43×0.75 |
| Field of View | 1/2"靶面 28.48°×17.08°×22.78°; 1/3"靶面 21.46°×12.88°×17.16° |
| Distortion | <-2% |
| Back Focal Length | 12mm |
| Iris | Manual |
| Dimensions | Φ52×66.1mm |
| Weight | 393g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
