AZURE-0110XSMAC-I

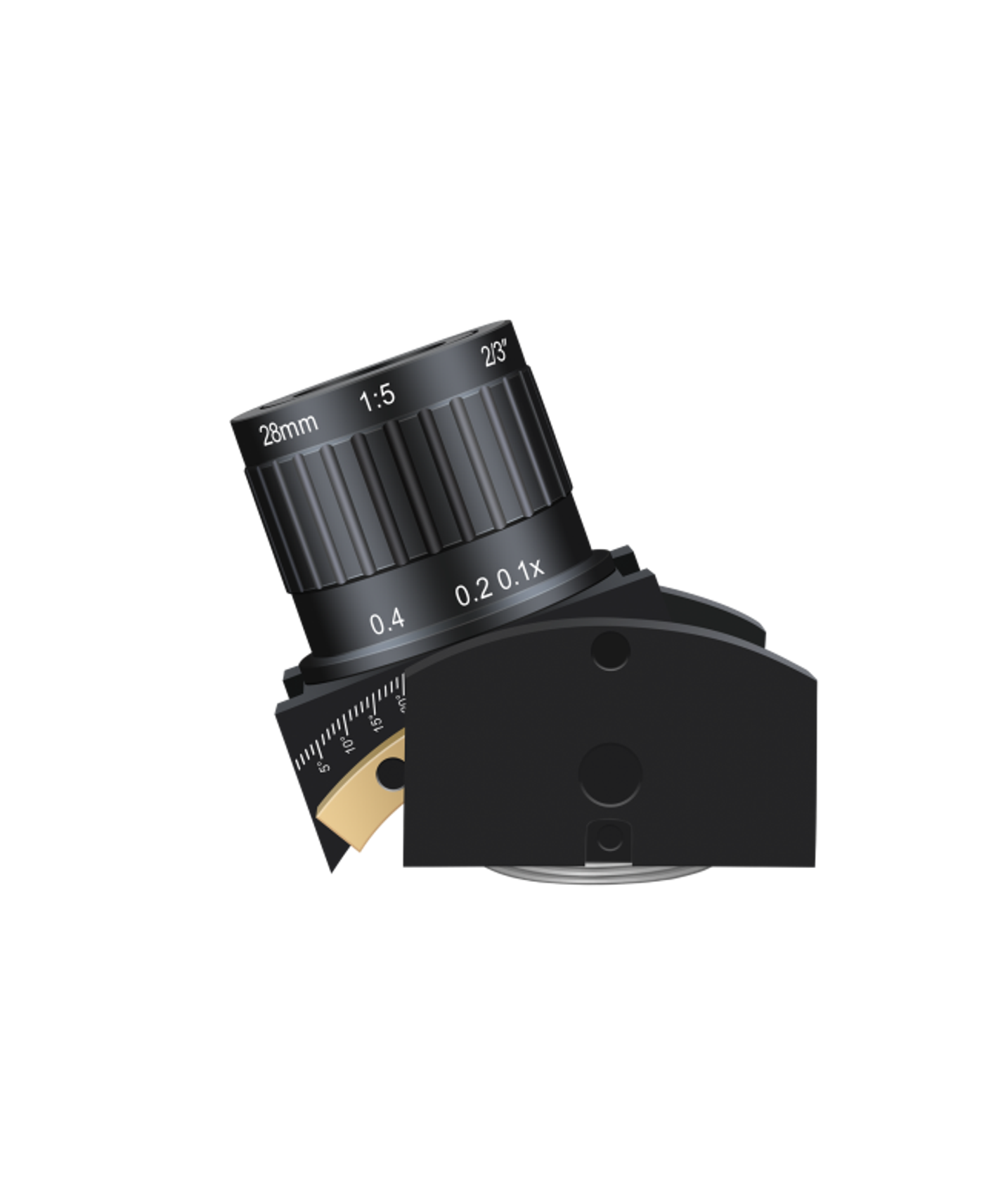

AZURE-0110XSMAC-I Macro Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
0.1X~1.0XMagnification
2/3"Sensor Size
3 MPResolution
3MPResolving Power
CMount
F5.0Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0110XSMAC-I.
- DimensionsΦ31.6×51.56mm
- Weight-
- Back Focal Length21.05mm
- Filter ThreadM27×0.5
- MountC
Key Specifications
| Magnification | 0.1X~1.0X |
| Sensor Size | 2/3" |
| Resolution | 3 MP |
| Resolving Power | 3MP |
| Mount | C |
| Aperture | F5.0 |
| Working Distance | 0.05~∞m |
| Filter Thread | M27×0.5 |
| Field of View | 1/2"靶面 16.26°×9.8°×13.04°; 1/3"靶面 12.23°×7.36°×9.8° |
| Distortion | <0.05% |
| Back Focal Length | 21.05mm |
| Iris | Fixed Iris |
| Dimensions | Φ31.6×51.56mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
