AZURE-0307XTHM

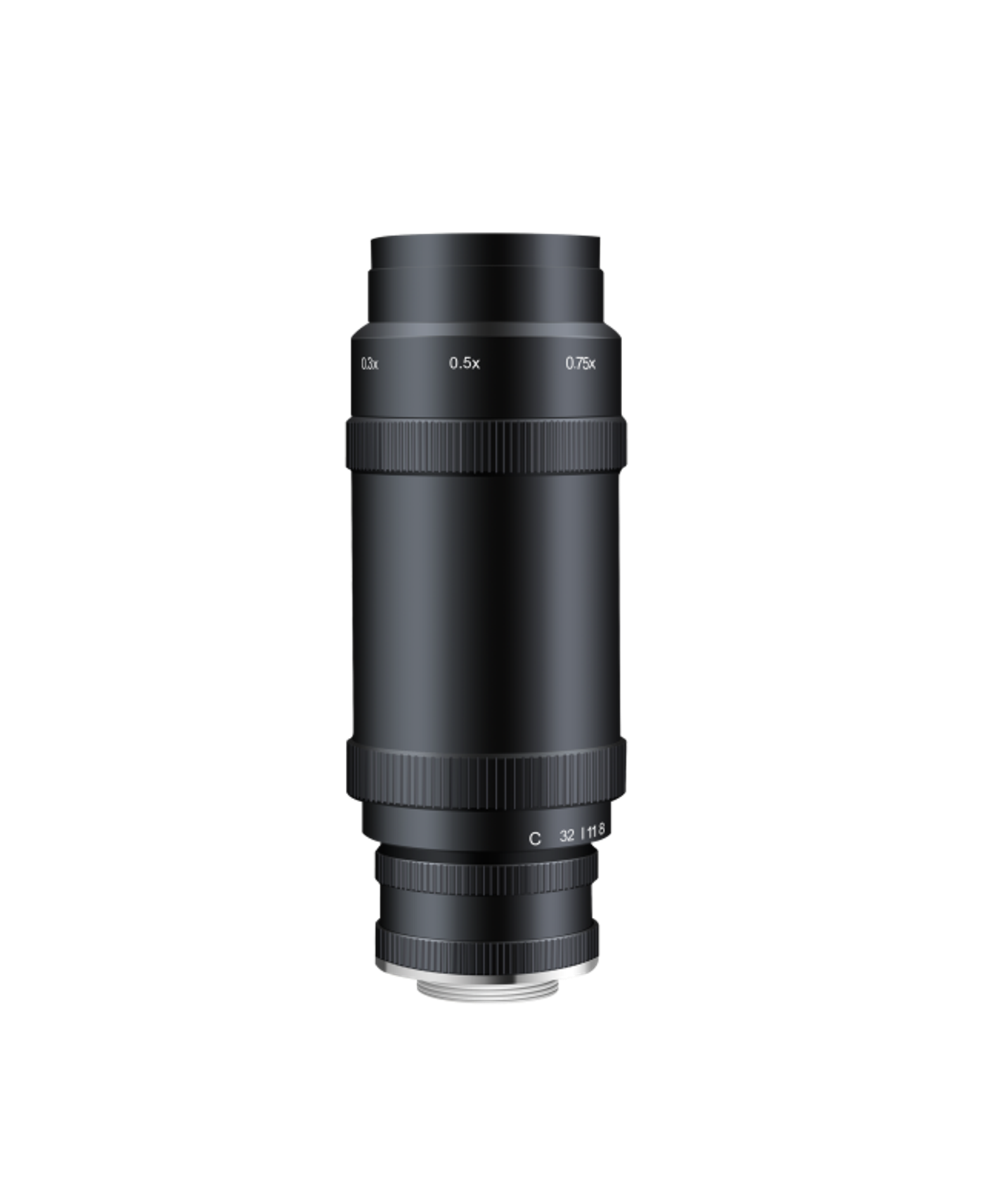

AZURE-0307XTHM Macro Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
2/3”Sensor Size
6 MPResolution
6MPResolving Power
CMount
F2.8Aperture
36.67×22×39.33mm 22×13.2×17.6mmField of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0307XTHM.
- Back Focal Length22.78mm
- MountC
Key Specifications
| Sensor Size | 2/3” |
| Resolution | 6 MP |
| Resolving Power | 6MP |
| Mount | C |
| Aperture | F2.8 |
| Field of View | 36.67×22×39.33mm 22×13.2×17.6mm |
| Distortion | -0.21%~+0.51% |
| Back Focal Length | 22.78mm |
| Iris | M-Iris |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0307XTHM fits, or recommend a better match.
