AZURE-DN0618TM

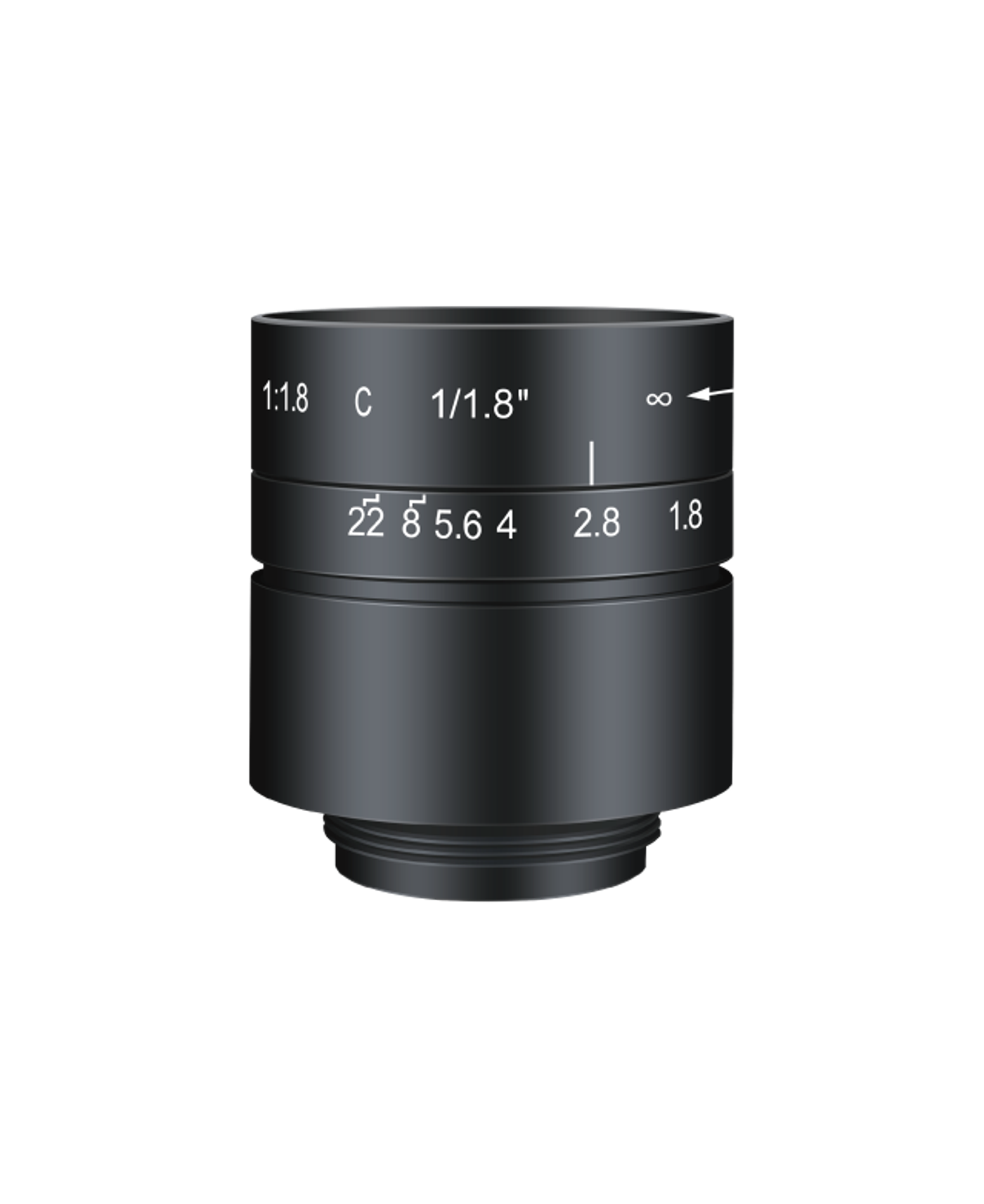

AZURE-DN0618TM 6.2mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
6.2 mmFocal Length
1/1.8"Sensor Size
200 Ip/mmResolving Power
CMount
F1.8Aperture
M34×0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-DN0618TM.
- DimensionsΦ36×34.25mm
- Weight91.5g
- Back Focal Length12.01mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Focal Length | 6.2 mm |
| Sensor Size | 1/1.8" |
| Resolving Power | 200 Ip/mm |
| Mount | C |
| Aperture | F1.8 |
| Filter Thread | M34×0.5 |
| Field of View | 1/2"靶面 66.8°×42.64°×55.22°; 1/3"靶面 52.18°×32.56°×42.64° |
| Distortion | <-2.9% |
| Back Focal Length | 12.01mm |
| Iris | Manual Iris |
| Dimensions | Φ36×34.25mm |
| Weight | 91.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-DN0618TM fits, or recommend a better match.
