AZURE-NV2520SWIR

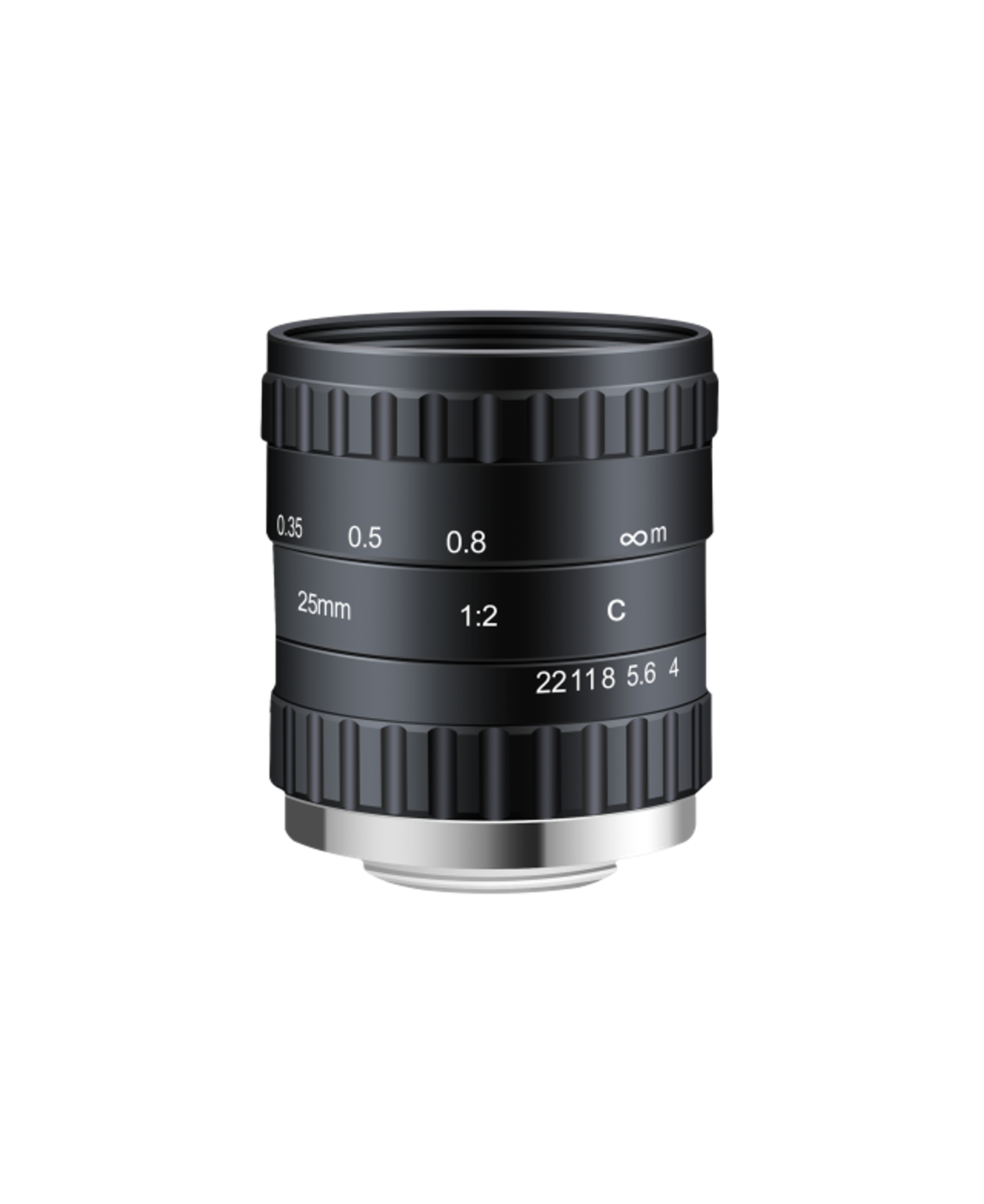

AZURE-NV2520SWIR 25mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
28mmSensor Size
40lp/mmResolving Power
CMount
F2.0~F22Aperture
0.25m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-NV2520SWIR.
- DimensionsΦ44×48.53mm
- Weight195g
- Back Focal Length15.07mm
- Filter ThreadM40.5×0.5
- MountC
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 28mm |
| Resolving Power | 40lp/mm |
| Mount | C |
| Aperture | F2.0~F22 |
| Working Distance | 0.25m~∞ |
| Filter Thread | M40.5×0.5 |
| Field of View | 1/2"靶面 48.04°×29.8°×39.19°; 1/3"靶面 35.49°×21.74°×28.72° |
| Distortion | ＜-2.3% |
| Back Focal Length | 15.07mm |
| Iris | M-Iris |
| Dimensions | Φ44×48.53mm |
| Weight | 195g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
