AZURE-0220CF

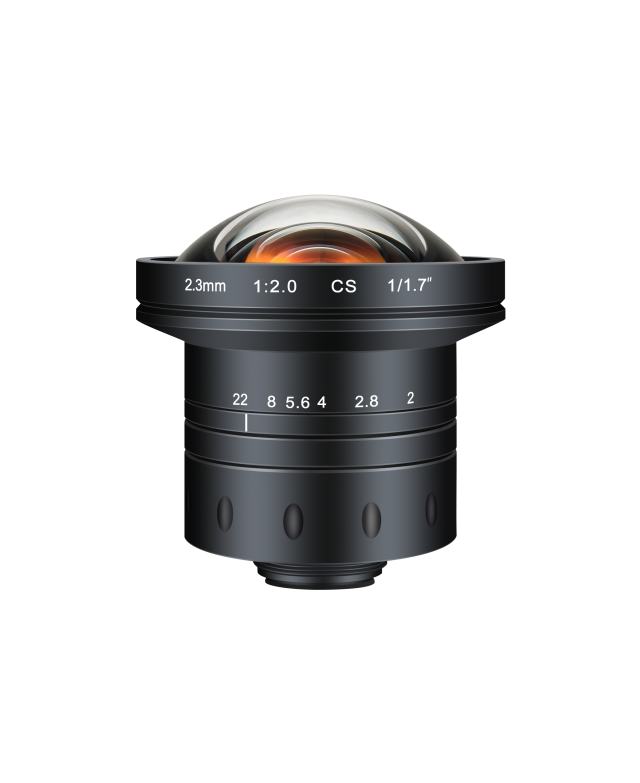

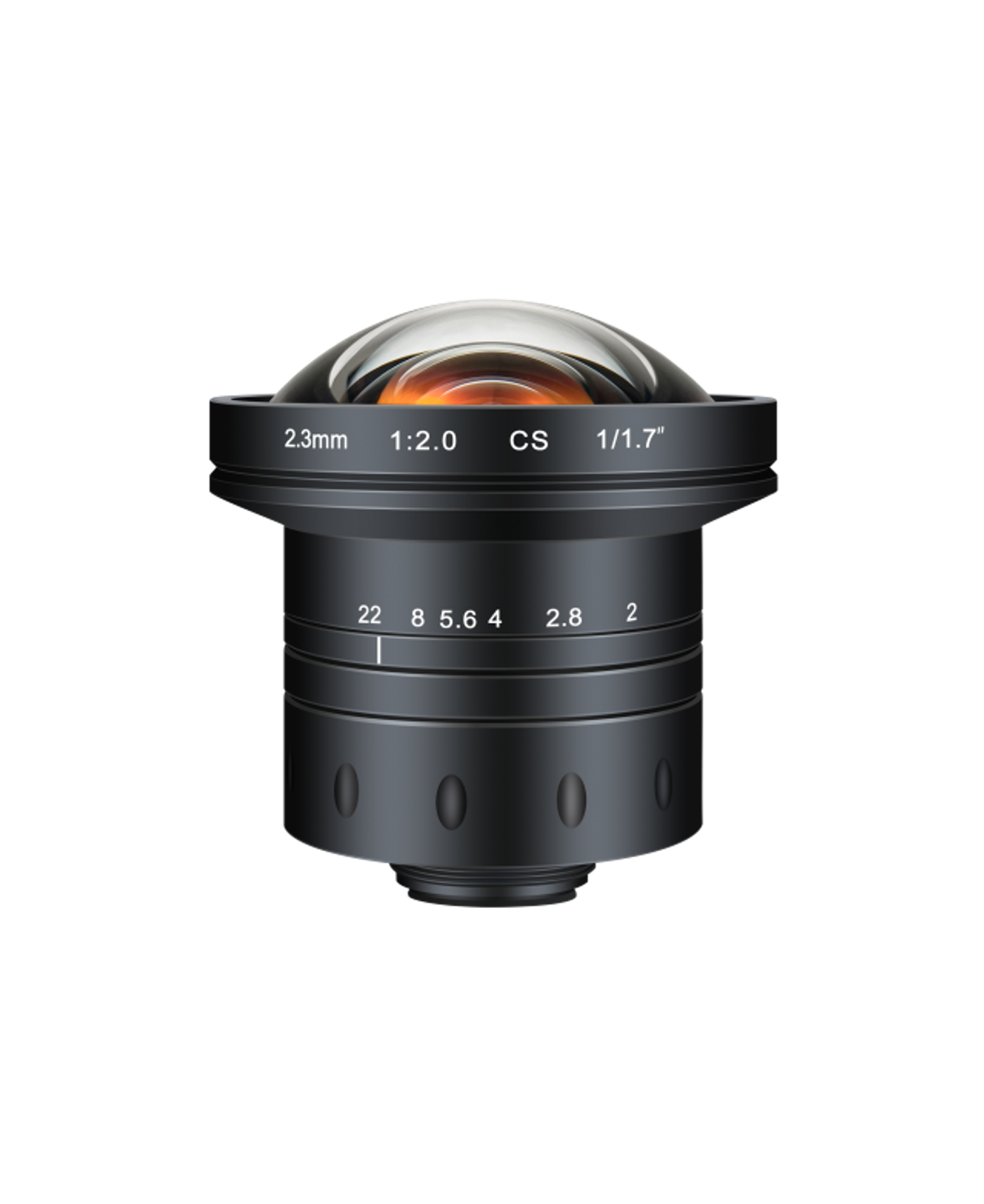

AZURE-0220CF 2.3mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
2.3 mmFocal Length
1/1.7”Sensor Size
170 Ip/mmResolving Power
CSMount
F2.0~F22Aperture
0.5~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0220CF.
- DimensionsΦ68×50.48mm
- Weight326.9g
- Back Focal Length7.2mm
- Filter Thread-
- MountCS
Key Specifications
| Focal Length | 2.3 mm |
| Sensor Size | 1/1.7” |
| Resolving Power | 170 Ip/mm |
| Mount | CS |
| Aperture | F2.0~F22 |
| Working Distance | 0.5~∞m |
| Filter Thread | - |
| Field of View | 1/1.7"靶面 130°×100.82°×117.16° |
| Distortion | <3% |
| Back Focal Length | 7.2mm |
| Iris | Manual |
| Dimensions | Φ68×50.48mm |
| Weight | 326.9g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
