ELS-96/3.7V16K

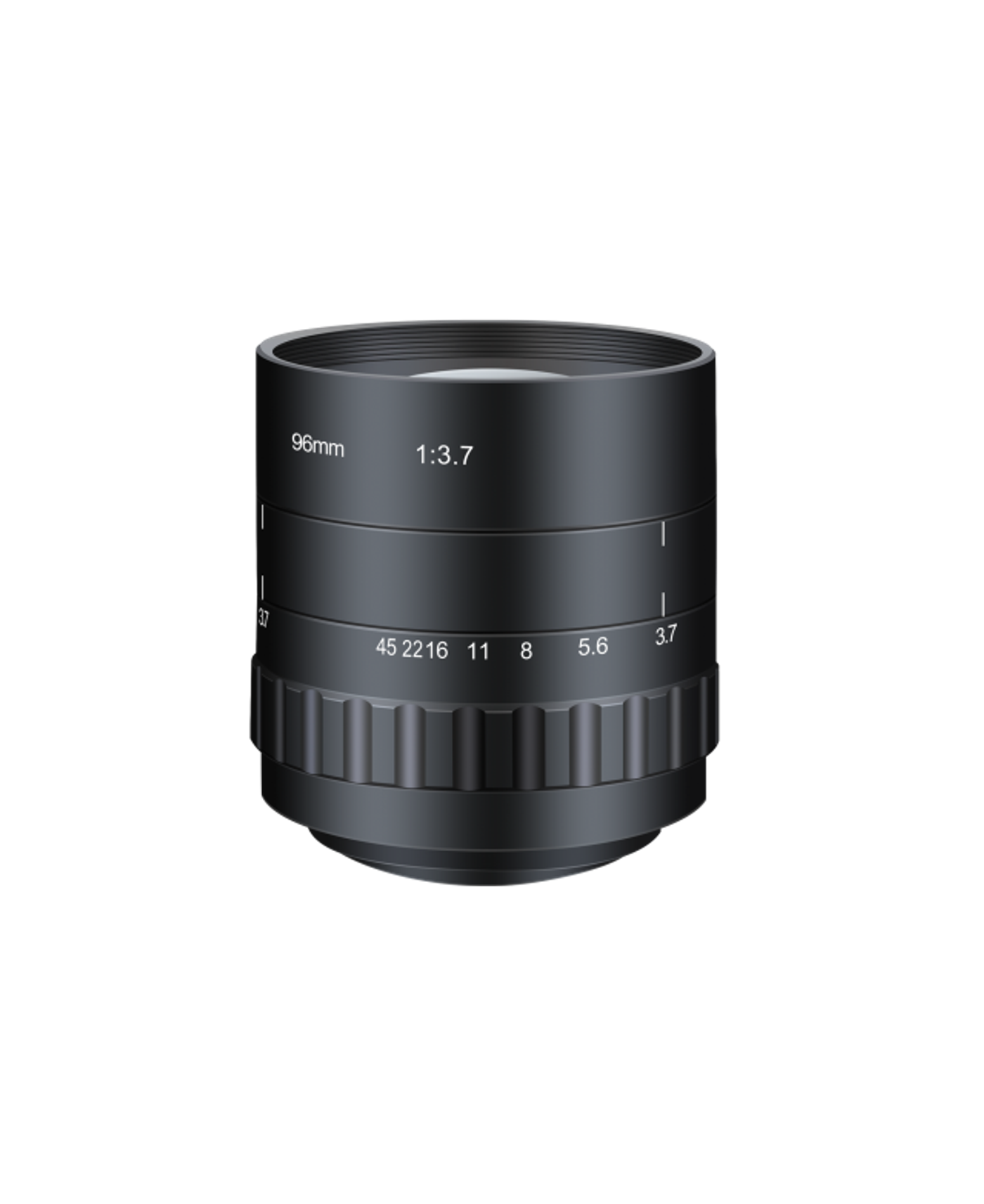

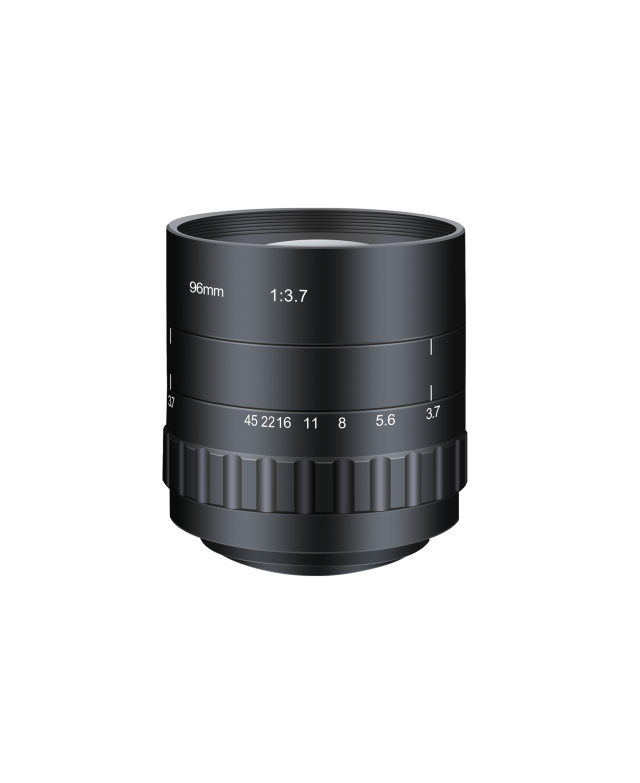

ELS-96/3.7V16K 96mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
96 mmFocal Length
62mmSensor Size
100lp/mmResolving Power
M55×0.75Filter Thread
364gWeight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ELS-96/3.7V16K.
- Weight364g
- Filter ThreadM55×0.75
Key Specifications
| Focal Length | 96 mm |
| Sensor Size | 62mm |
| Resolving Power | 100lp/mm |
| Filter Thread | M55×0.75 |
| Weight | 364g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether ELS-96/3.7V16K fits, or recommend a better match.
