HN-P-3528-4K-7u-M42

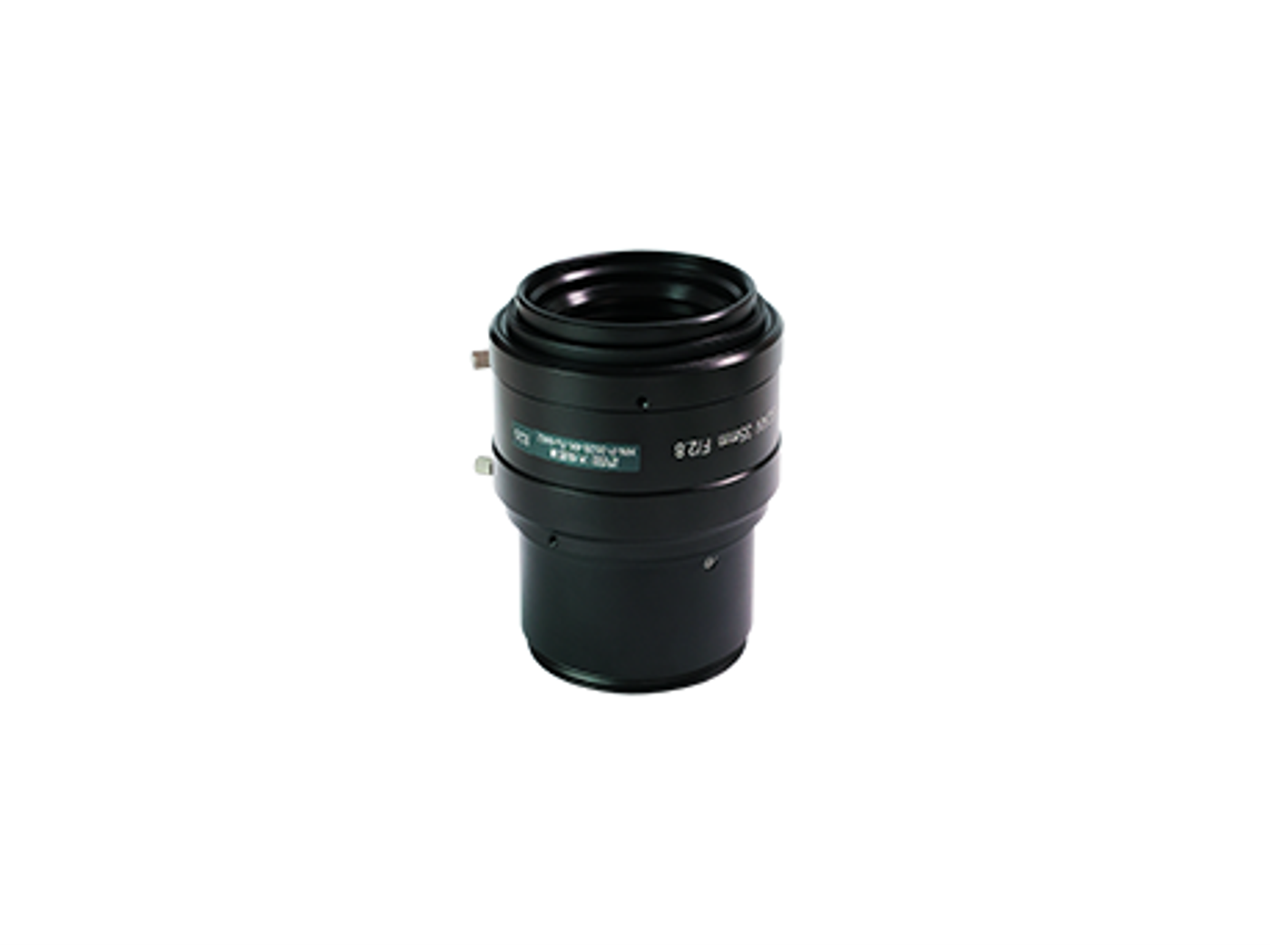

Daheng HN-P-3528-4K-7u-M42 35mm 4K Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
35 mmFocal Length
Φ30 mmSensor Size
7Resolving Power
Φ30 mmImage Circle
4KLine Sensor
M42 × 1Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-3528-4K-7u-M42.
- DimensionsΦ53.00 × 76.9 ~ 67.6 mm (D × L)
- Filter ThreadM40.5 × 0.5
- MountM42 × 1
Key features
- 35 mm focal length
- 4K line scan resolution
- Metal barrel
- M42 mount
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | Φ30 mm |
| Resolving Power | 7 |
| Image Circle | Φ30 mm |
| Line Sensor | 4K |
| Mount | M42 × 1 |
| Aperture | F2.8 - F22 |
| Working Distance | 150 - 1200 mm |
| MOD | 150 mm |
| Filter Thread | M40.5 × 0.5 |
| Field of View | — |
| Distortion | -0.443% |
| Focus Range | 150 mm - ∞ |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ53.00 × 76.9 ~ 67.6 mm (D × L) |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
