SAM-LS96F35-C62
SAM-LS96F35-C62 — 96mm Line Scan Lens (62 mm image circle)
Large image circle optics for 4K, 8K and 16K line scan cameras.
96 mmFocal Length
100 lp/mmResolving Power
62 mmImage Circle
F3.5Aperture
M52 x 0.75Filter Thread
338 gWeight
Dimensions

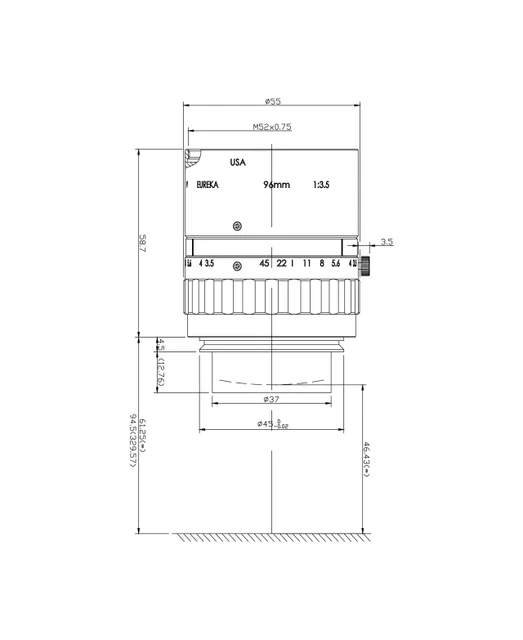

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- Weight338 g
- Filter ThreadM52 x 0.75
Product overview
SAM-LS96F35-C62 (96mm Line Scan Lens (62 mm image circle)) is listed in the Line Scan range. Catalogue values include 62 mm image circle.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 96 mm |
| Resolving Power | 100 lp/mm |
| Image Circle | 62 mm |
| Aperture | F3.5 |
| Filter Thread | M52 x 0.75 |
| Weight | 338 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether SAM-LS96F35-C62 fits, or recommend a better match.
