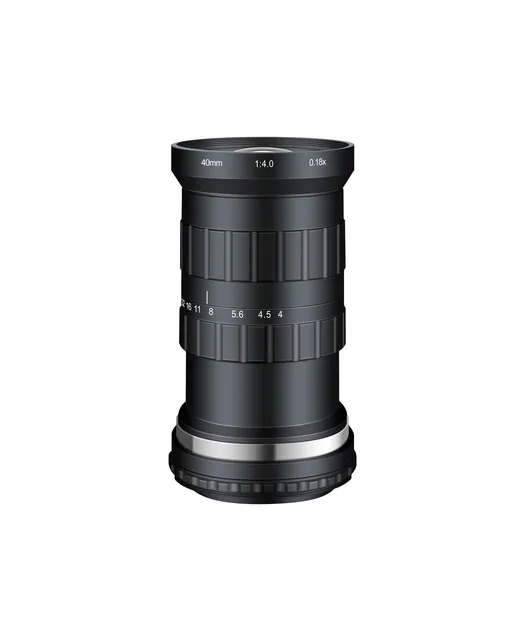

SAM-LS40F40-M72-C63 — 40mm Line Scan Lens (62.5 mm image circle, M72)
Large image circle optics for 4K, 8K and 16K line scan cameras.
40 mmFocal Length
＞130 lp/mmResolving Power
62.5 mmImage Circle
M72Mount
F4Aperture
M72 x 0.75Filter Thread
Dimensions
Mechanical dimensions

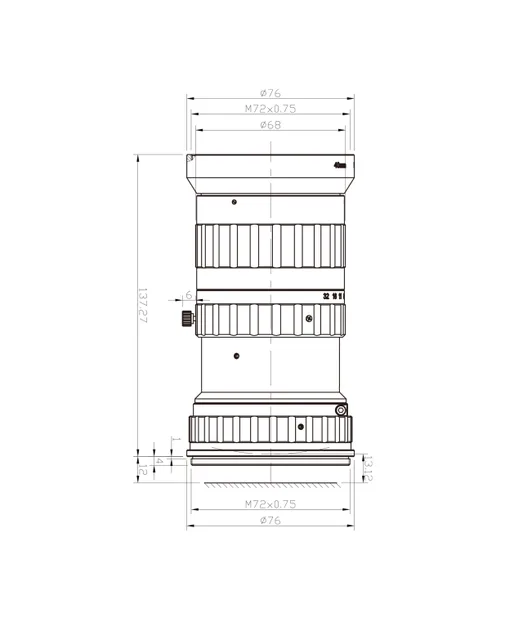

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ76 x 137.27
- Weight1240 g
- Back Focal Length13.12 mm
- Filter ThreadM72 x 0.75
- MountM72
Product overview
SAM-LS40F40-M72-C63 (40mm Line Scan Lens (62.5 mm image circle)) is listed in the Line Scan range. Catalogue values include 62.5 mm image circle, M72, distortion <0.2%.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 40 mm |
| Resolving Power | ＞130 lp/mm |
| Image Circle | 62.5 mm |
| Mount | M72 |
| Aperture | F4 |
| Filter Thread | M72 x 0.75 |
| Distortion | <0.2% |
| Back Focal Length | 13.12 mm |
| Dimensions | Φ76 x 137.27 |
| Weight | 1240 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
