HN-P-6040-L

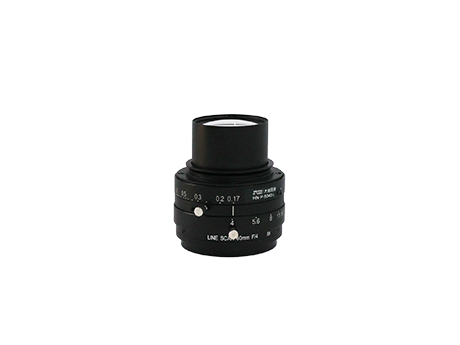

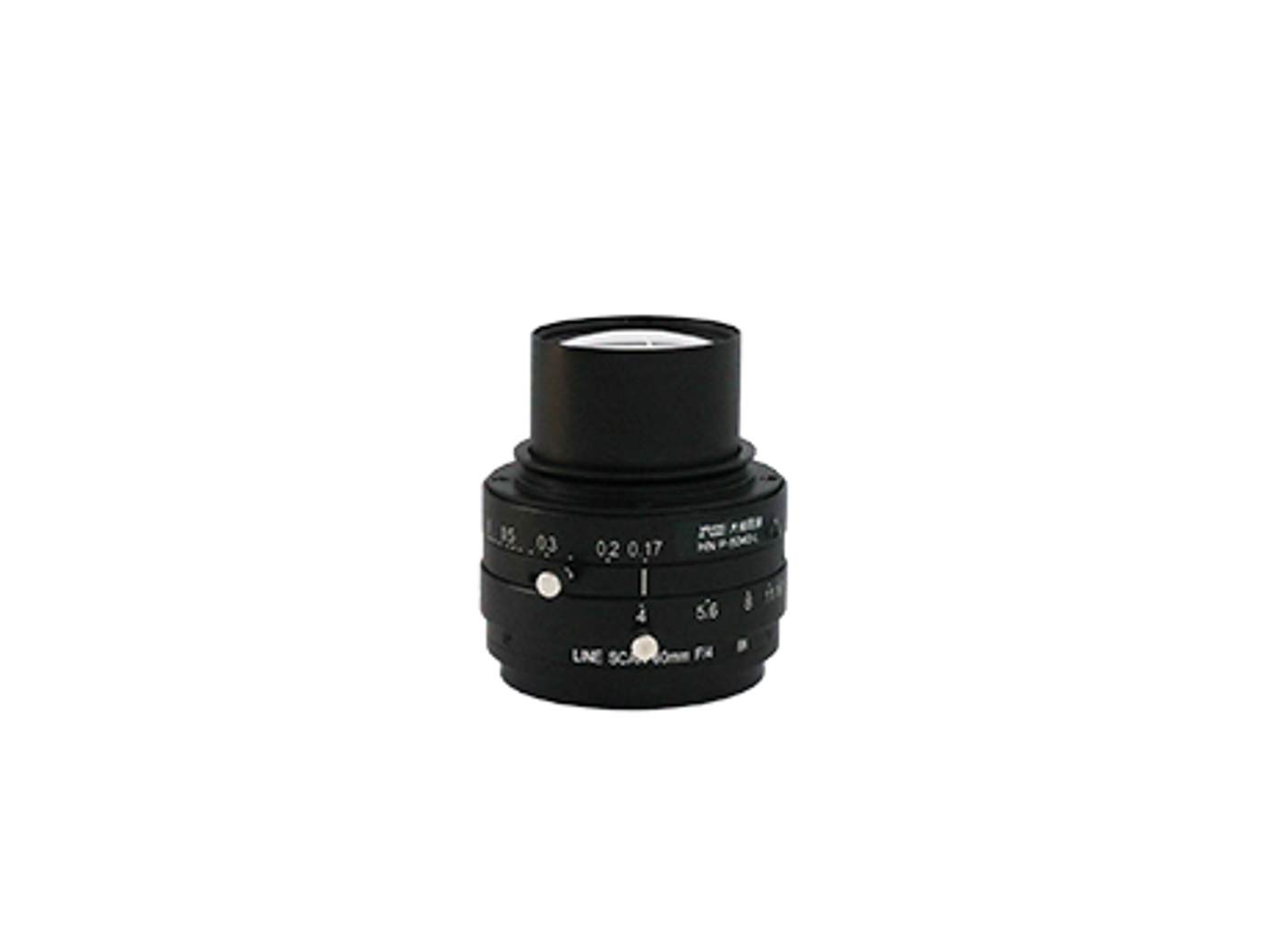

Daheng HN-P-6040-L 60mm 8K Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
60 mmFocal Length
0.04× – 0.50×Magnification
Φ60 mmSensor Size
7Resolving Power
Φ60 mmImage Circle
8KLine Sensor
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-6040-L.
- DimensionsΦ48.5 × 31.67 mm (D × L)
- Filter ThreadM40.5 × 0.5
- MountV38 (V-Mount)
Key features
- 60 mm focal length
- 8K line scan resolution
- Magnification 0.04× to 0.50× with extension rings
- Extension and adapter rings available
Key Specifications
| Focal Length | 60 mm |
| Magnification | 0.04× – 0.50× |
| Sensor Size | Φ60 mm |
| Resolving Power | 7 |
| Image Circle | Φ60 mm |
| Line Sensor | 8K |
| Mount | V38 (V-Mount) |
| Aperture | F4 - F32 |
| Working Distance | 167 mm - ∞ |
| MOD | 167 mm |
| Filter Thread | M40.5 × 0.5 |
| Field of View | — |
| Distortion | 0.16 / 0.14 / 0.10 / 0.017 / -0.04% |
| Focus Range | 167 mm - ∞ |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ48.5 × 31.67 mm (D × L) |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
