AZURE-5528HF

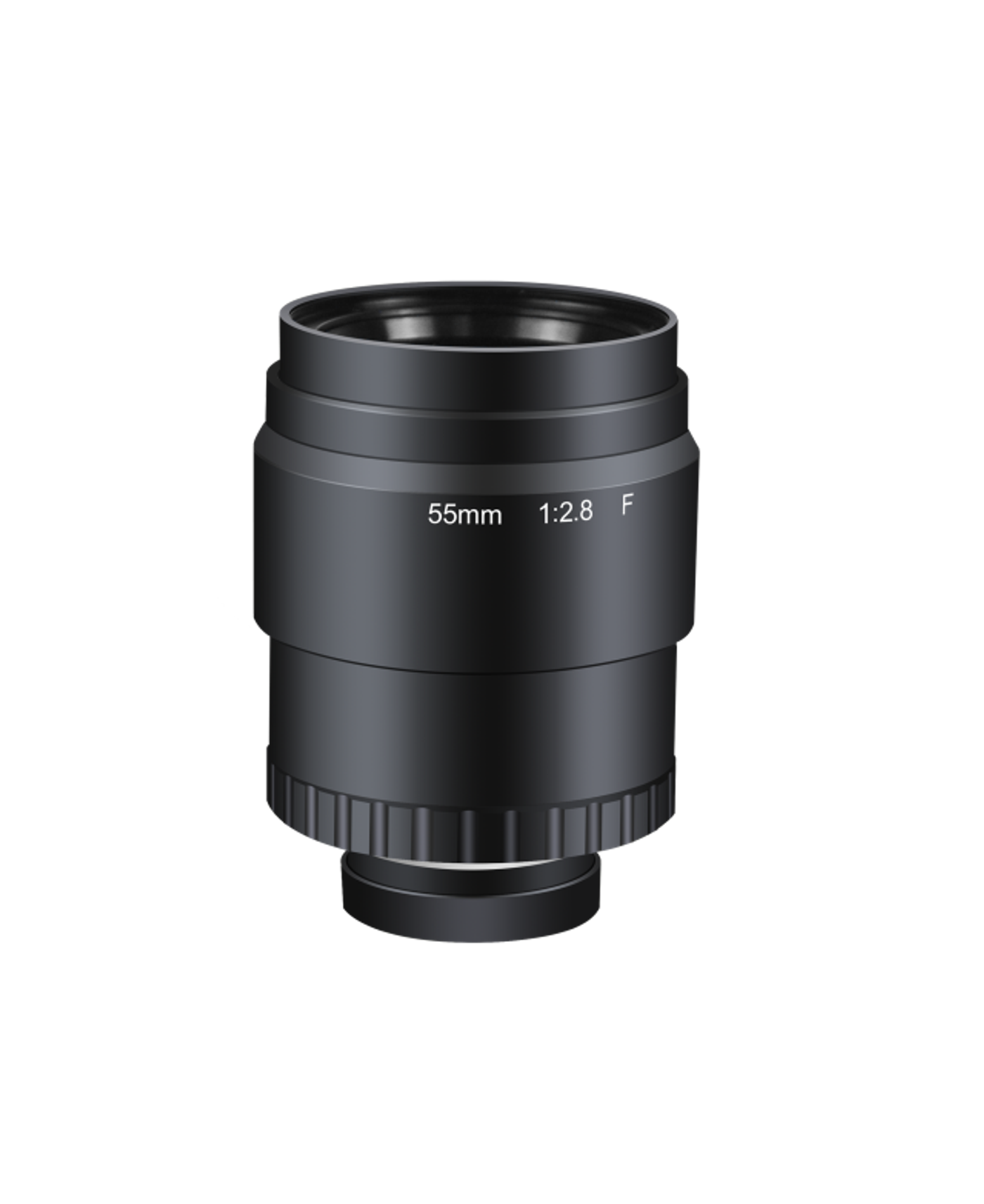

AZURE-5528HF 55mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
55 mmFocal Length
0~0.52XMagnification
43mmSensor Size
5umResolving Power
FMount
2.8Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5528HF.
- DimensionsΦ73×81.46mm
- Weight489.5g
- Back Focal Length34.74~64.35mm
- Filter ThreadM62×0.75
- MountF
Key Specifications
| Focal Length | 55 mm |
| Magnification | 0~0.52X |
| Sensor Size | 43mm |
| Resolving Power | 5um |
| Mount | F |
| Aperture | 2.8 |
| Filter Thread | M62×0.75 |
| Distortion | <0.2% |
| Back Focal Length | 34.74~64.35mm |
| Iris | Manual |
| Dimensions | Φ73×81.46mm |
| Weight | 489.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-5528HF fits, or recommend a better match.
