ELS-85 4.0TZ

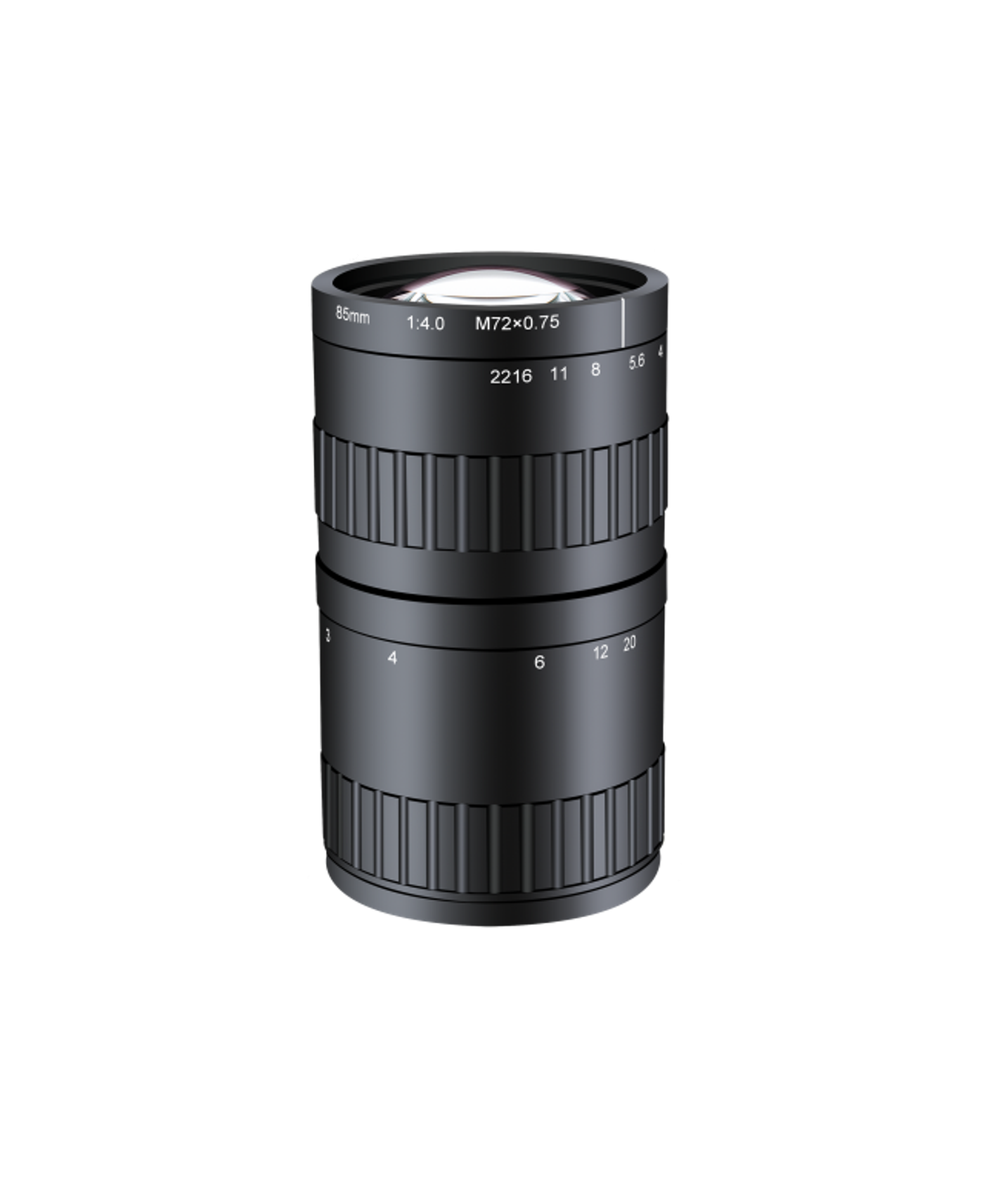

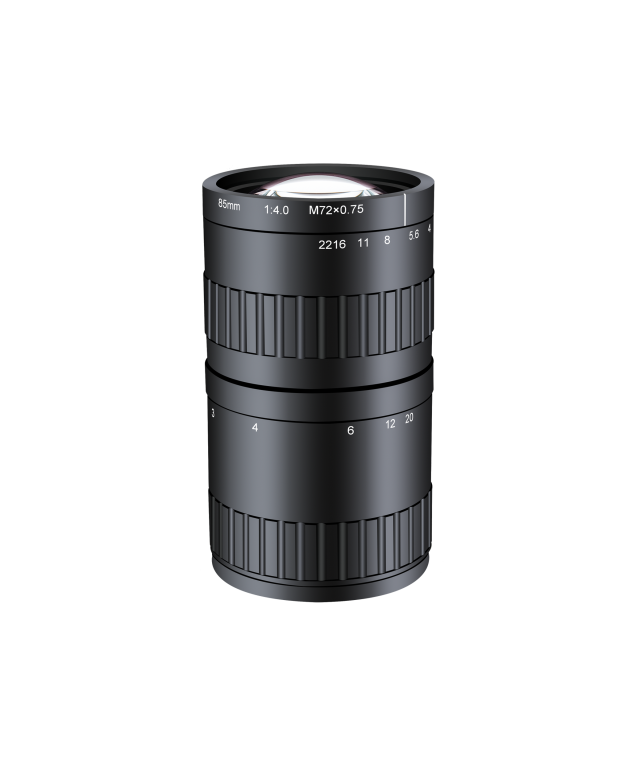

ELS-85 4.0TZ 85mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
85 mmFocal Length
-0.05~-0.50XMagnification
62mmSensor Size
8KResolving Power
M72×0.75Mount
F4.0Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ELS-85 4.0TZ.
- DimensionsΦ75.4×126.75mm
- Weight-
- Back Focal Length53.58mm
- Filter ThreadM67×0.75
- MountM72×0.75
Key Specifications
| Focal Length | 85 mm |
| Magnification | -0.05~-0.50X |
| Sensor Size | 62mm |
| Resolving Power | 8K |
| Mount | M72×0.75 |
| Aperture | F4.0 |
| Filter Thread | M67×0.75 |
| Distortion | ＜0.24% |
| Back Focal Length | 53.58mm |
| Iris | Manual |
| Dimensions | Φ75.4×126.75mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
