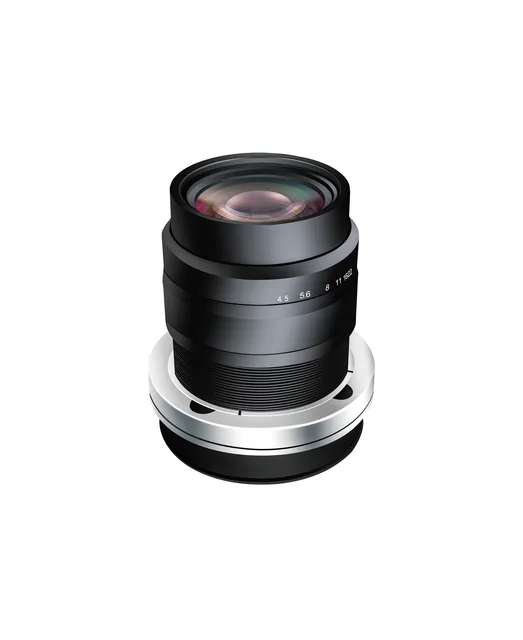

SAM-LS98F45-C68 — 98mm Line Scan Lens (68 mm image circle)
Large image circle optics for 4K, 8K and 16K line scan cameras.
98 mmFocal Length
3.5 µm(16K)/5 µm(12K)Resolving Power
68 mmImage Circle
F4.5Aperture
M52 x 0.75Filter Thread
<0.04%Distortion
Dimensions
Mechanical dimensions

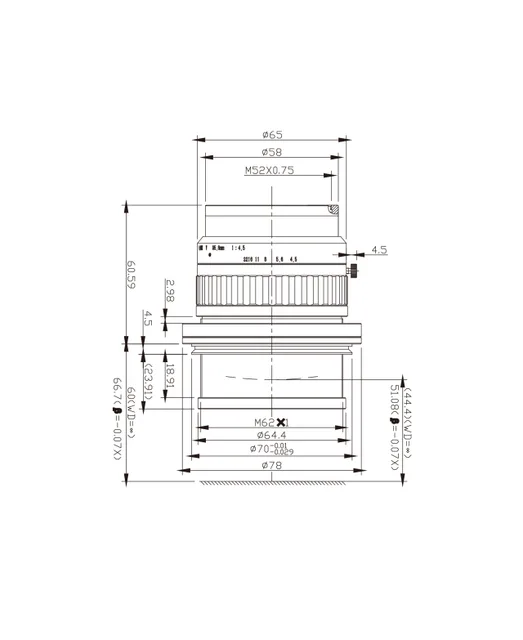

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- Back Focal Length44.4 mm
- Filter ThreadM52 x 0.75
Product overview
SAM-LS98F45-C68 (98mm Line Scan Lens (68 mm image circle)) is listed in the Line Scan range. Catalogue values include 68 mm image circle, distortion <0.04%.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 98 mm |
| Resolving Power | 3.5 µm(16K)/5 µm(12K) |
| Image Circle | 68 mm |
| Aperture | F4.5 |
| Filter Thread | M52 x 0.75 |
| Distortion | <0.04% |
| Back Focal Length | 44.4 mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
