LS8014A

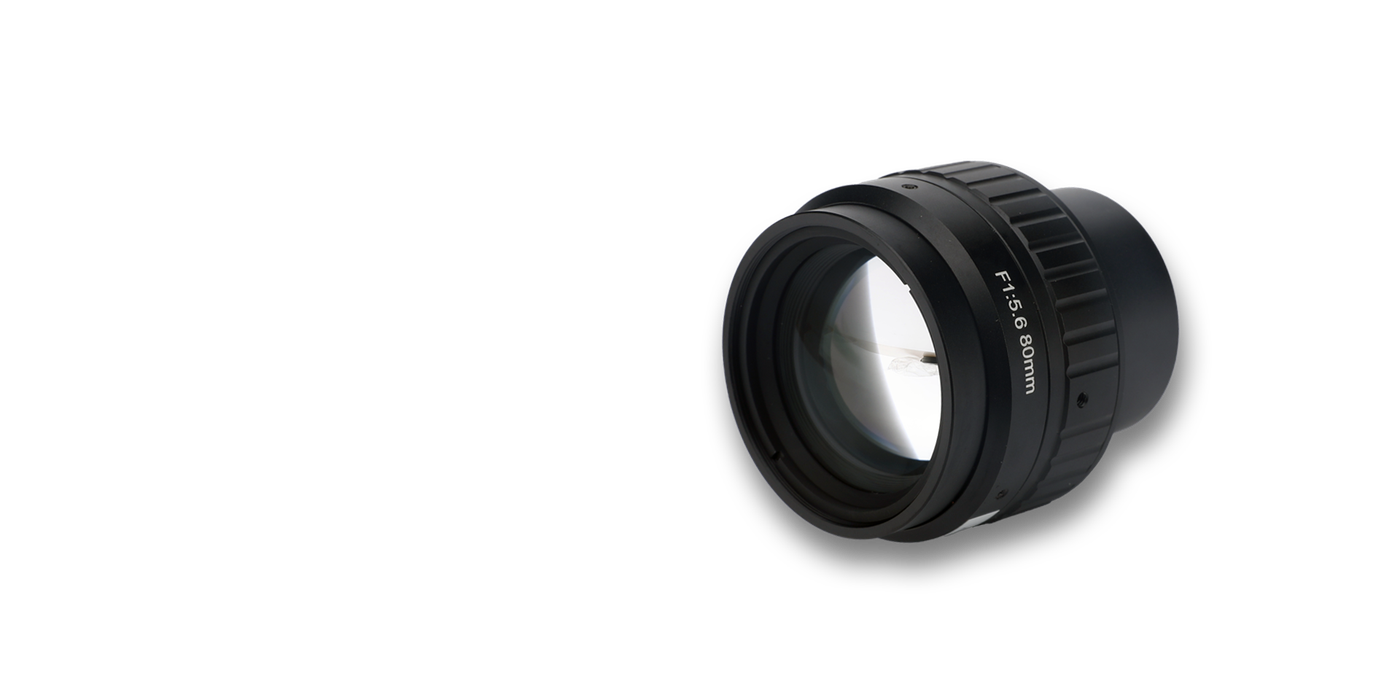

LS8014A 80mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
80 mmFocal Length
0.13-0.167Magnification
V-Mount（φ38）Mount
5.6-32Aperture
591.1Working Distance
M39.6×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS8014A.
- Filter ThreadM39.6×P0.5
- MountV-Mount（φ38）
Key Specifications
| Focal Length | 80 mm |
| Magnification | 0.13-0.167 |
| Mount | V-Mount（φ38） |
| Aperture | 5.6-32 |
| Working Distance | 591.1 |
| Filter Thread | M39.6×P0.5 |
| Distortion | 0.05% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS8014A fits, or recommend a better match.
