LS0802A

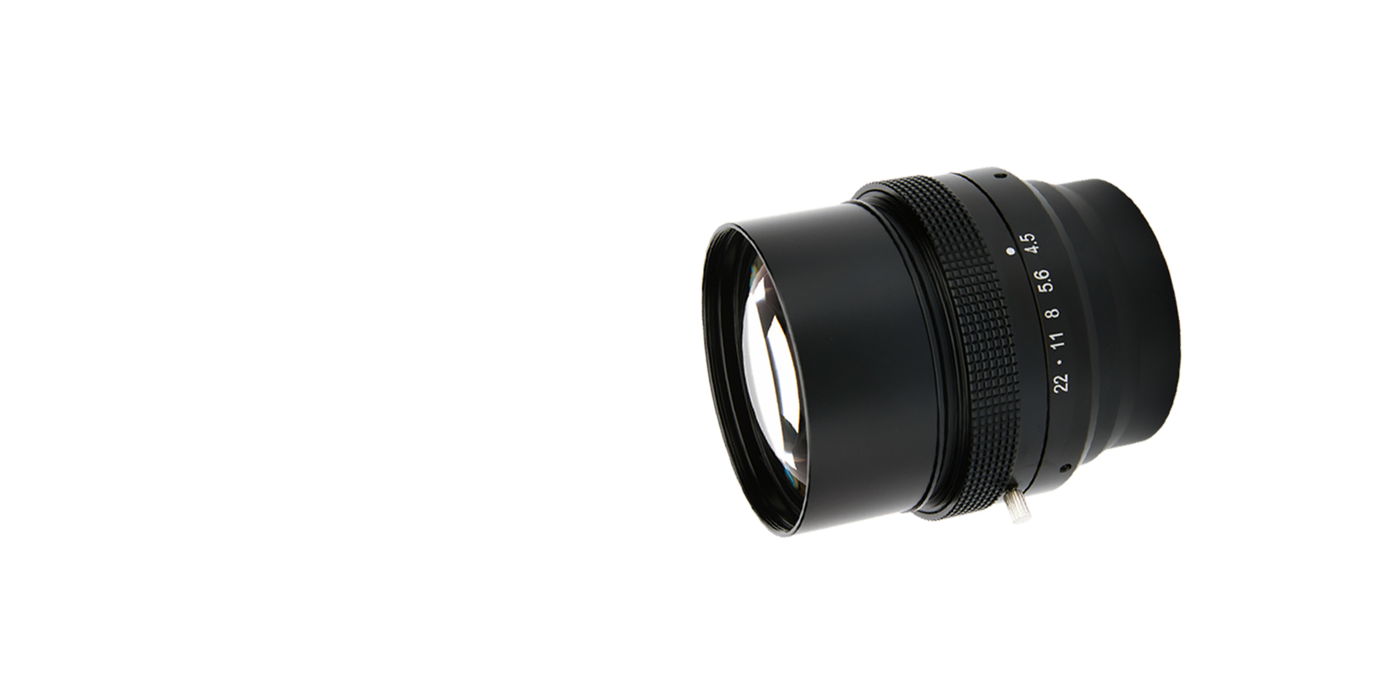

LS0802A 100mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
100 mmFocal Length
0.15-0.25Magnification
V-Mount（φ64）Mount
4.5-22Aperture
654.8Working Distance
M54×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS0802A.
- Filter ThreadM54×P0.75
- MountV-Mount（φ64）
Key Specifications
| Focal Length | 100 mm |
| Magnification | 0.15-0.25 |
| Mount | V-Mount（φ64） |
| Aperture | 4.5-22 |
| Working Distance | 654.8 |
| Filter Thread | M54×P0.75 |
| Distortion | 0.005% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS0802A fits, or recommend a better match.
