AZURE-3525MF

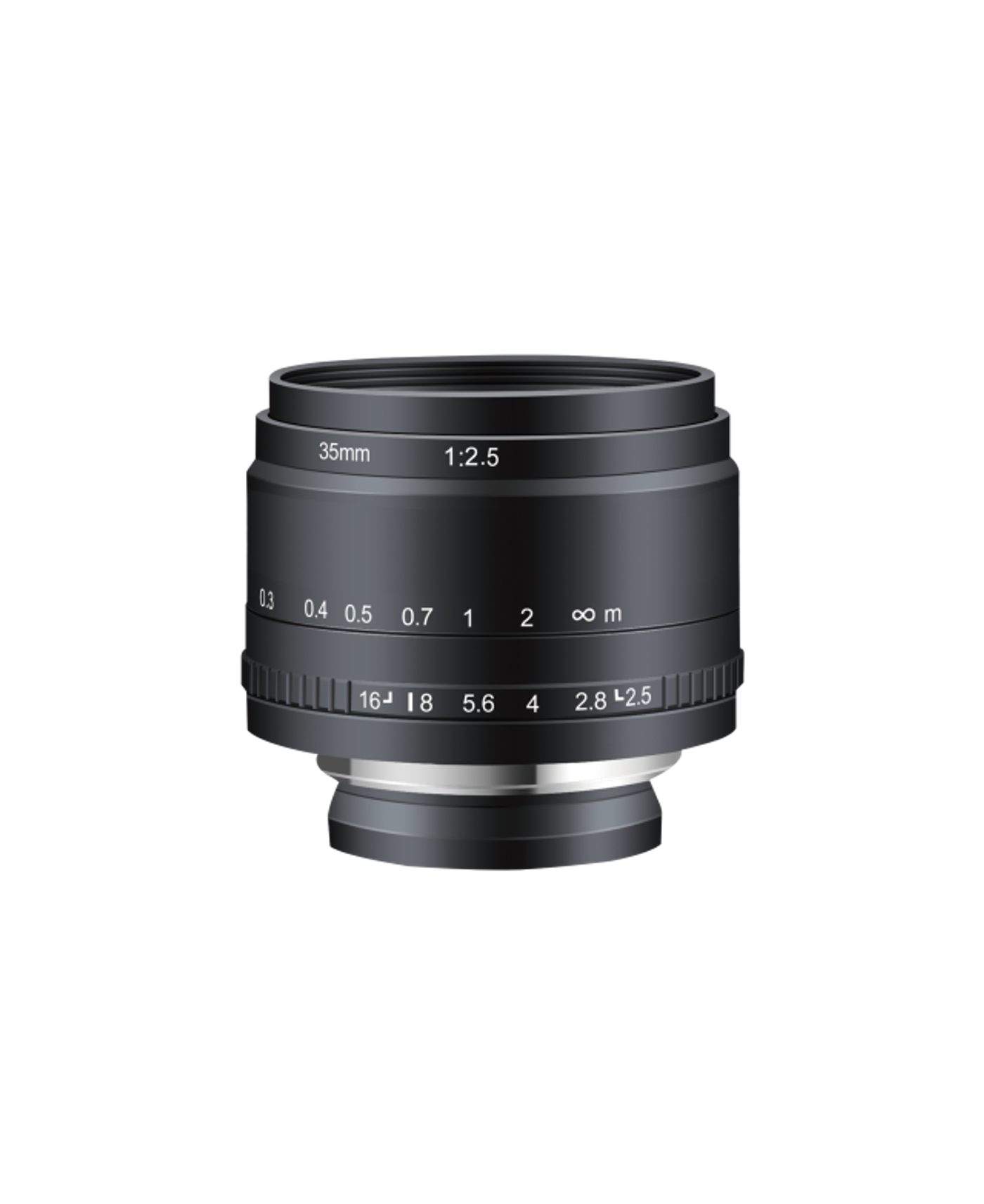

AZURE-3525MF 35mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
35 mmFocal Length
43mmSensor Size
30lp/mmResolving Power
FMount
F2.5~F16Aperture
0.3m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-3525MF.
- DimensionsΦ60×43.73mm
- Weight270g
- Back Focal Length34.35mm
- Filter ThreadM52×0.75
- MountF
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 43mm |
| Resolving Power | 30lp/mm |
| Mount | F |
| Aperture | F2.5~F16 |
| Working Distance | 0.3m~∞ |
| Filter Thread | M52×0.75 |
| Distortion | ＜-3% |
| Back Focal Length | 34.35mm |
| Iris | M-Iris |
| Dimensions | Φ60×43.73mm |
| Weight | 270g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
