SAM-LS110F30-F-C43

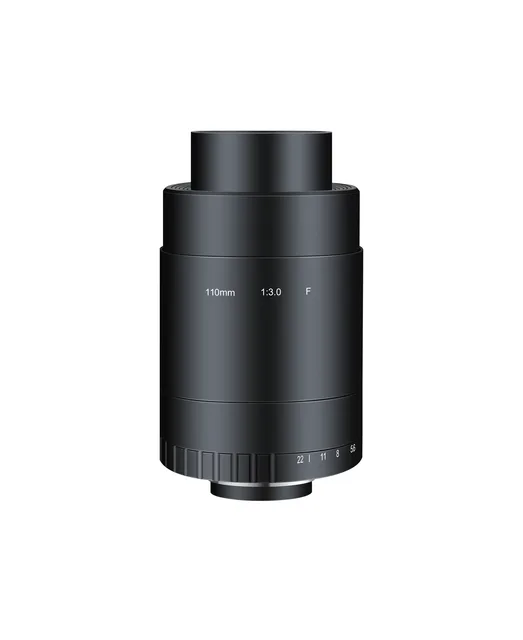

SAM-LS110F30-F-C43 — 110mm Line Scan Lens (43 mm image circle, F-Mount)
Large image circle optics for 4K, 8K and 16K line scan cameras.
110 mmFocal Length
3.5μmResolving Power
43 mmImage Circle
F-MountMount
F3Aperture
184 mm - infWorking Distance
Dimensions

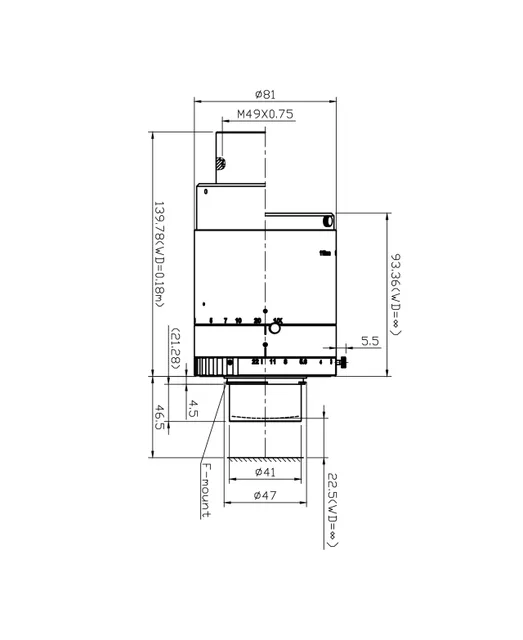

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ81 x 130.51 mm
- Weight1030 g
- Back Focal Length22.14 mm
- Filter ThreadM72 x 0.75
- MountF-Mount
Product overview
SAM-LS110F30-F-C43 (110mm Line Scan Lens (43 mm image circle)) is listed in the Line Scan range. Catalogue values include 43 mm image circle, F-Mount, WD 184 mm - inf, distortion <1.33%.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 110 mm |
| Resolving Power | 3.5μm |
| Image Circle | 43 mm |
| Mount | F-Mount |
| Aperture | F3 |
| Working Distance | 184 mm - inf |
| Filter Thread | M72 x 0.75 |
| Distortion | <1.33% |
| Back Focal Length | 22.14 mm |
| Dimensions | Φ81 x 130.51 mm |
| Weight | 1030 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
