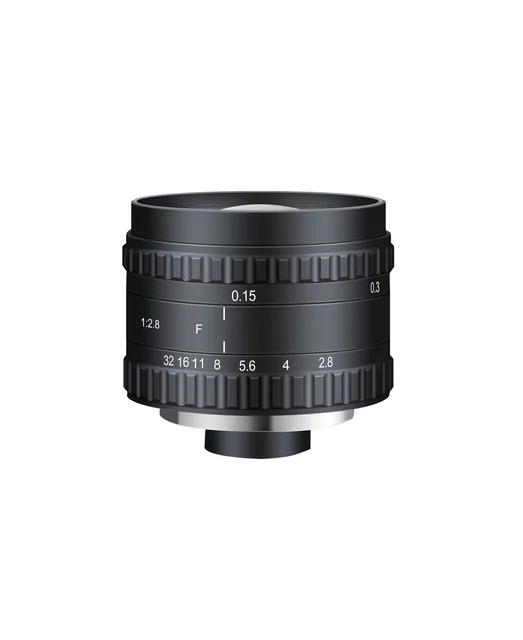

SAM-LS25F28-F-C43 — 25mm Line Scan Lens (43 mm image circle, F-Mount)
Large image circle optics for 4K, 8K and 16K line scan cameras.
25 mmFocal Length
50 lp/mmResolving Power
43 mmImage Circle
F-MountMount
F2.8 - F32Aperture
150 mm - infWorking Distance
Dimensions
Mechanical dimensions

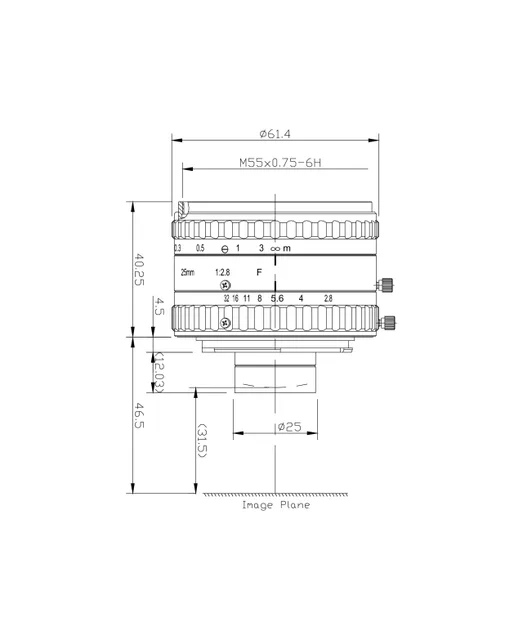

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ61.4 x 40.25 mm
- Weight320 g
- Back Focal Length31.5 mm
- Filter ThreadM55 x 0.75
- MountF-Mount
Product overview
SAM-LS25F28-F-C43 (25mm Line Scan Lens (43 mm image circle)) is listed in the Line Scan range. Catalogue values include 43 mm image circle, F-Mount, WD 150 mm - inf, distortion <-3.7%.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 25 mm |
| Resolving Power | 50 lp/mm |
| Image Circle | 43 mm |
| Mount | F-Mount |
| Aperture | F2.8 - F32 |
| Working Distance | 150 mm - inf |
| Filter Thread | M55 x 0.75 |
| Distortion | <-3.7% |
| Back Focal Length | 31.5 mm |
| Dimensions | Φ61.4 x 40.25 mm |
| Weight | 320 g |
