LS1620B

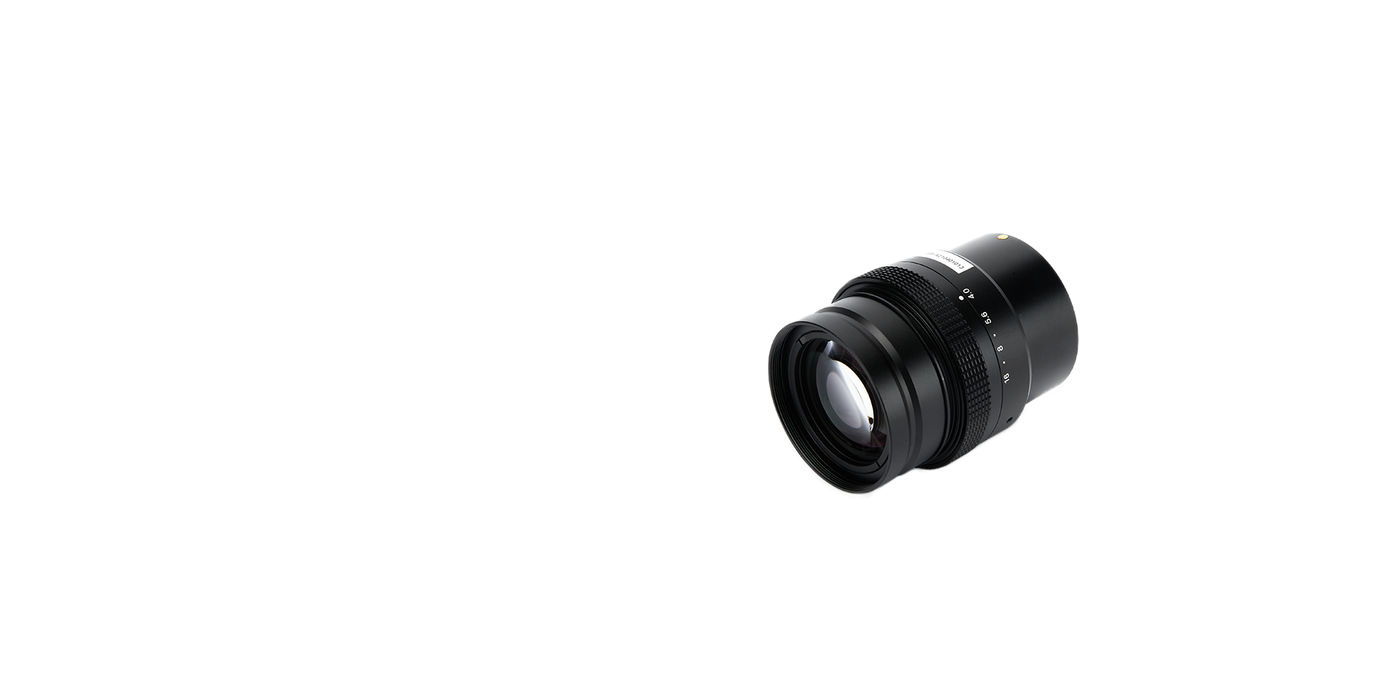

LS1620B 120mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
120 mmFocal Length
1.7-2.4Magnification
V-Mount（φ56）Mount
4.0-16Aperture
166.35Working Distance
M52×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1620B.
- Dimensionsφ61.1
- Weight485
- Filter ThreadM52×P0.75
- MountV-Mount（φ56）
Key Specifications
| Focal Length | 120 mm |
| Magnification | 1.7-2.4 |
| Mount | V-Mount（φ56） |
| Aperture | 4.0-16 |
| Working Distance | 166.35 |
| Filter Thread | M52×P0.75 |
| Distortion | 0.002% |
| Dimensions | φ61.1 |
| Weight | 485 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS1620B fits, or recommend a better match.
