SAM-LS100F56-C100
SAM-LS100F56-C100 — 100mm Line Scan Lens (100 mm image circle)
Large image circle optics for 4K, 8K and 16K line scan cameras.
100 mmFocal Length
40 lp/mmResolving Power
100 mmImage Circle
F5.6Aperture
M37 x 0.75Filter Thread
106.5 gWeight
Dimensions

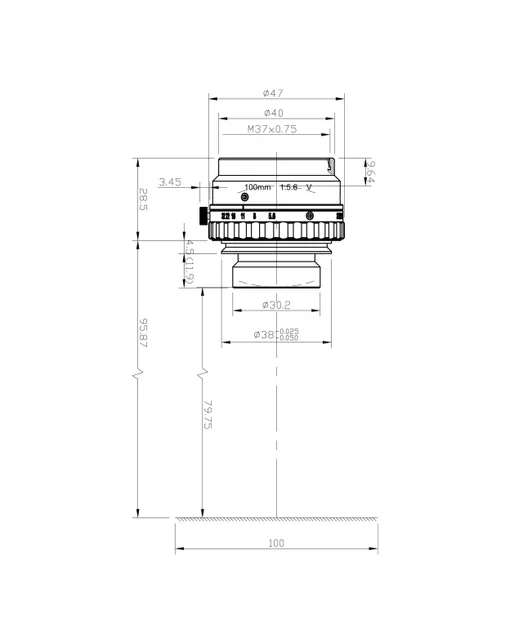

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- Weight106.5 g
- Filter ThreadM37 x 0.75
Product overview
SAM-LS100F56-C100 (100mm Line Scan Lens (100 mm image circle)) is listed in the Line Scan range. Catalogue values include 100 mm image circle.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 100 mm |
| Resolving Power | 40 lp/mm |
| Image Circle | 100 mm |
| Aperture | F5.6 |
| Filter Thread | M37 x 0.75 |
| Weight | 106.5 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether SAM-LS100F56-C100 fits, or recommend a better match.
