SAM-FA25F28-C23
SAM-FA25F28-C23 — 25mm Machine Vision Lens (2/3", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3"Sensor Size
250 lp/mmResolving Power
C-MountMount
F2.8 - F22Aperture
150 mm - infWorking Distance
Dimensions

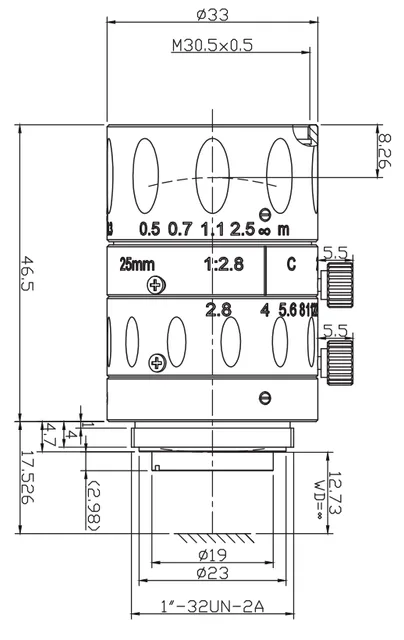

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ33 x 46.5 mm
- Weight106 g
- Back Focal Length12.73 mm
- Filter ThreadM30.5 x 0.5
- MountC-Mount
Product overview
SAM-FA25F28-C23 (25mm Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.46%, WD 150 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Resolving Power | 250 lp/mm |
| Mount | C-Mount |
| Aperture | F2.8 - F22 |
| Working Distance | 150 mm - inf |
| Filter Thread | M30.5 x 0.5 |
| Field of View | 26.76° x 18.92° x 18.92° |
| Distortion | <-0.46% |
| Back Focal Length | 12.73 mm |
| Iris | Manual |
| Dimensions | Φ33 x 46.5 mm |
| Weight | 106 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
