HN-2528-6M-C2/3B

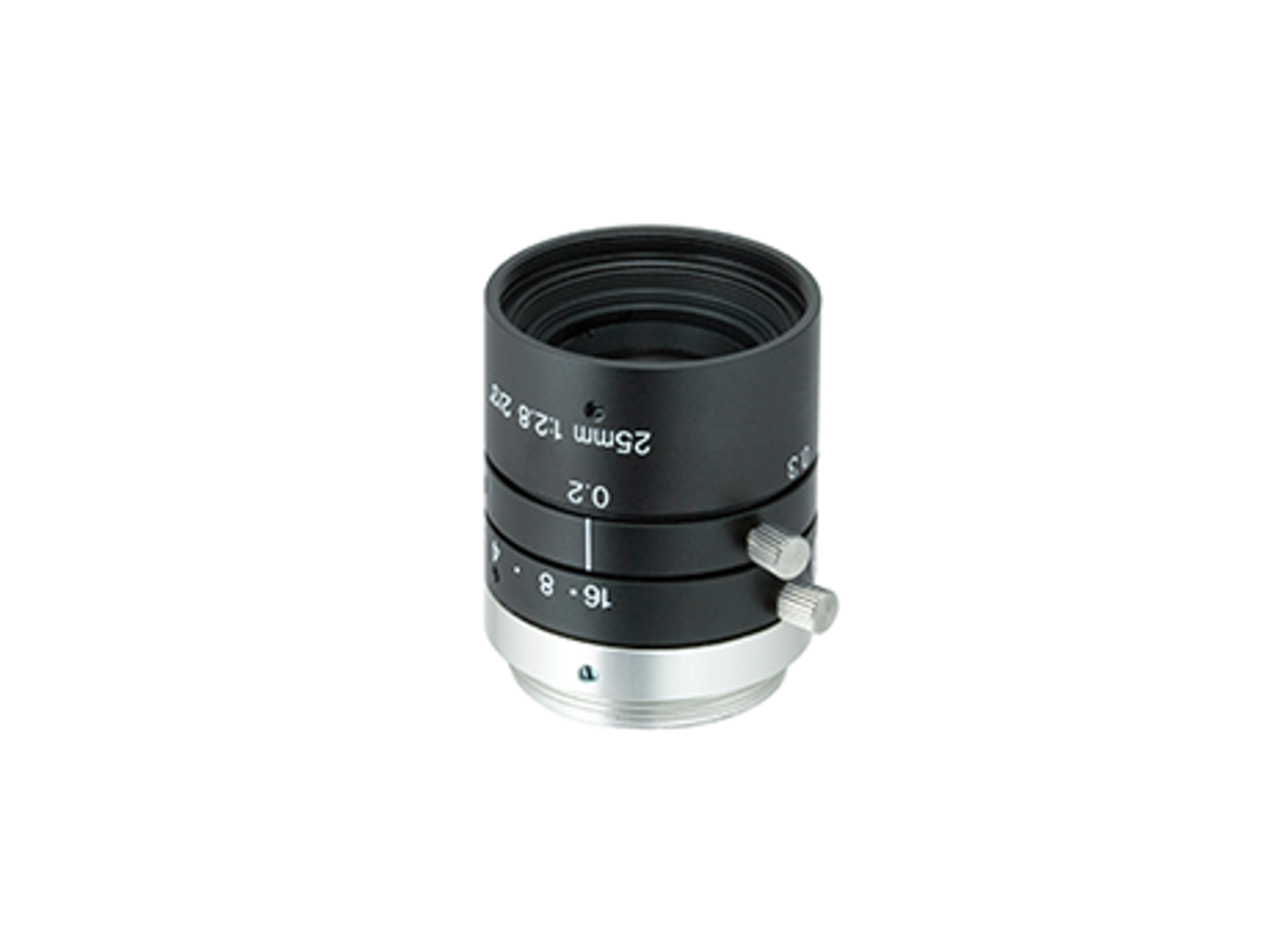

Daheng HN-2528-6M-C2/3B 25mm 6 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3"Sensor Size
6 MPResolution
C-mountMount
F2.8 - F16Aperture
200 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-2528-6M-C2/3B.
- DimensionsΦ29 × 31.5 mm (D × L)
- Weight42 g
- Filter ThreadM27 × 0.5
- MountC-mount
Key features
- Designed for 2/3" 6 MP sensors
- Holds performance at long working distances
- Ultra-compact barrel
- Vibration resistance rated to 5 G
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Resolution | 6 MP |
| Mount | C-mount |
| Aperture | F2.8 - F16 |
| Working Distance | 200 mm - ∞ |
| MOD | 200 mm |
| Filter Thread | M27 × 0.5 |
| Field of View | 19.9° × 15.0° (H × V) |
| Distortion | 0.77% |
| Focus Range | 0.2 m - ∞ |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ29 × 31.5 mm (D × L) |
| Weight | 42 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
