ELS-28/2.8V

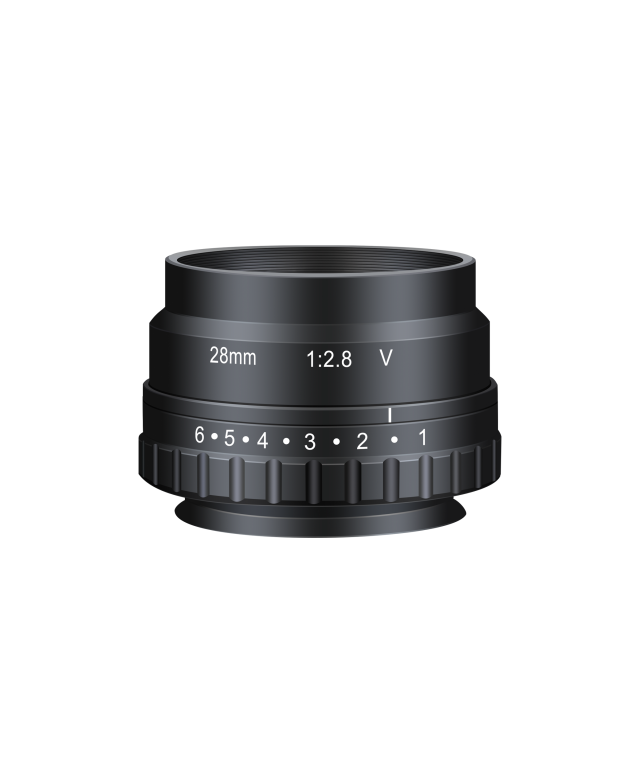

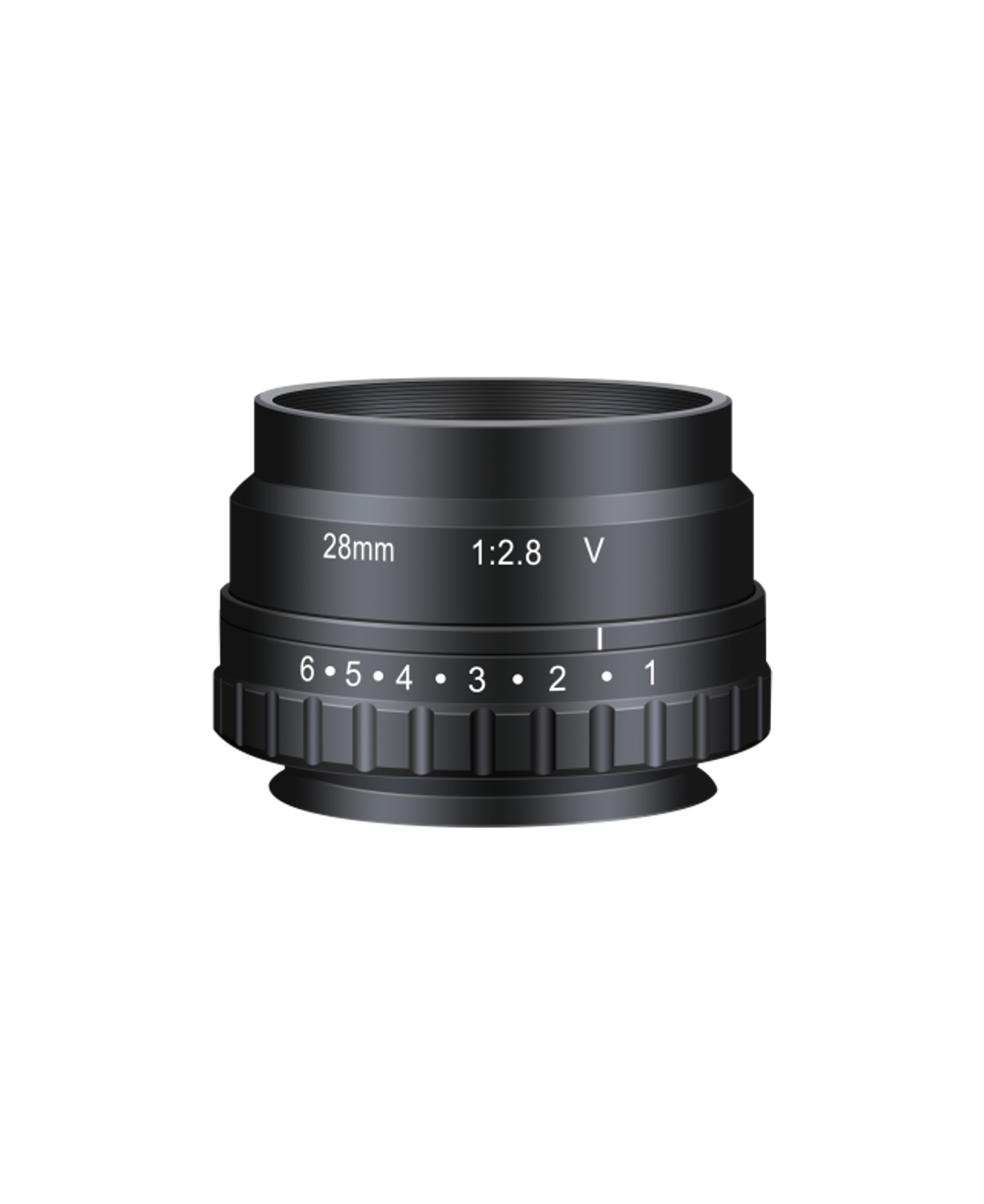

ELS-28/2.8V 28mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
28 mmFocal Length
30mmSensor Size
40lp/mmResolving Power
M37×0.75Filter Thread
89gWeight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ELS-28/2.8V.
- Weight89g
- Filter ThreadM37×0.75
Key Specifications
| Focal Length | 28 mm |
| Sensor Size | 30mm |
| Resolving Power | 40lp/mm |
| Filter Thread | M37×0.75 |
| Weight | 89g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether ELS-28/2.8V fits, or recommend a better match.
