ELS-40/40M16K-0.15X

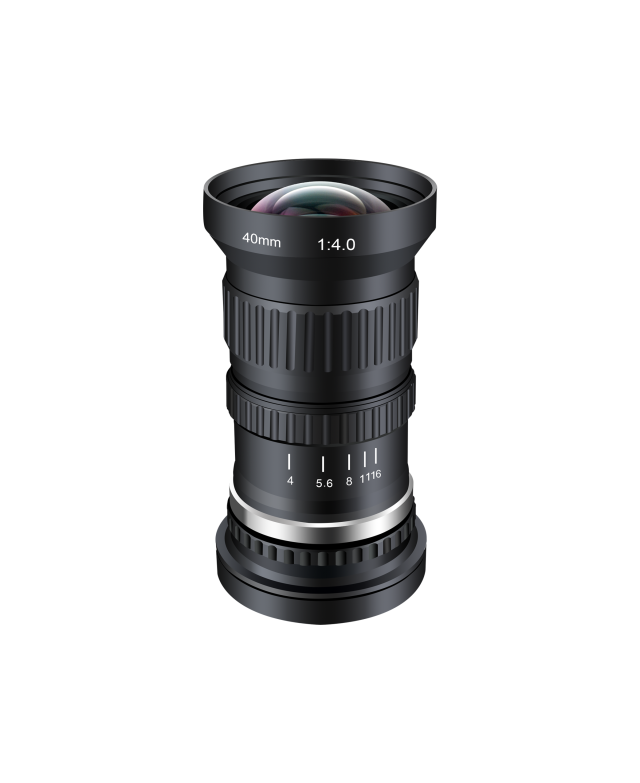

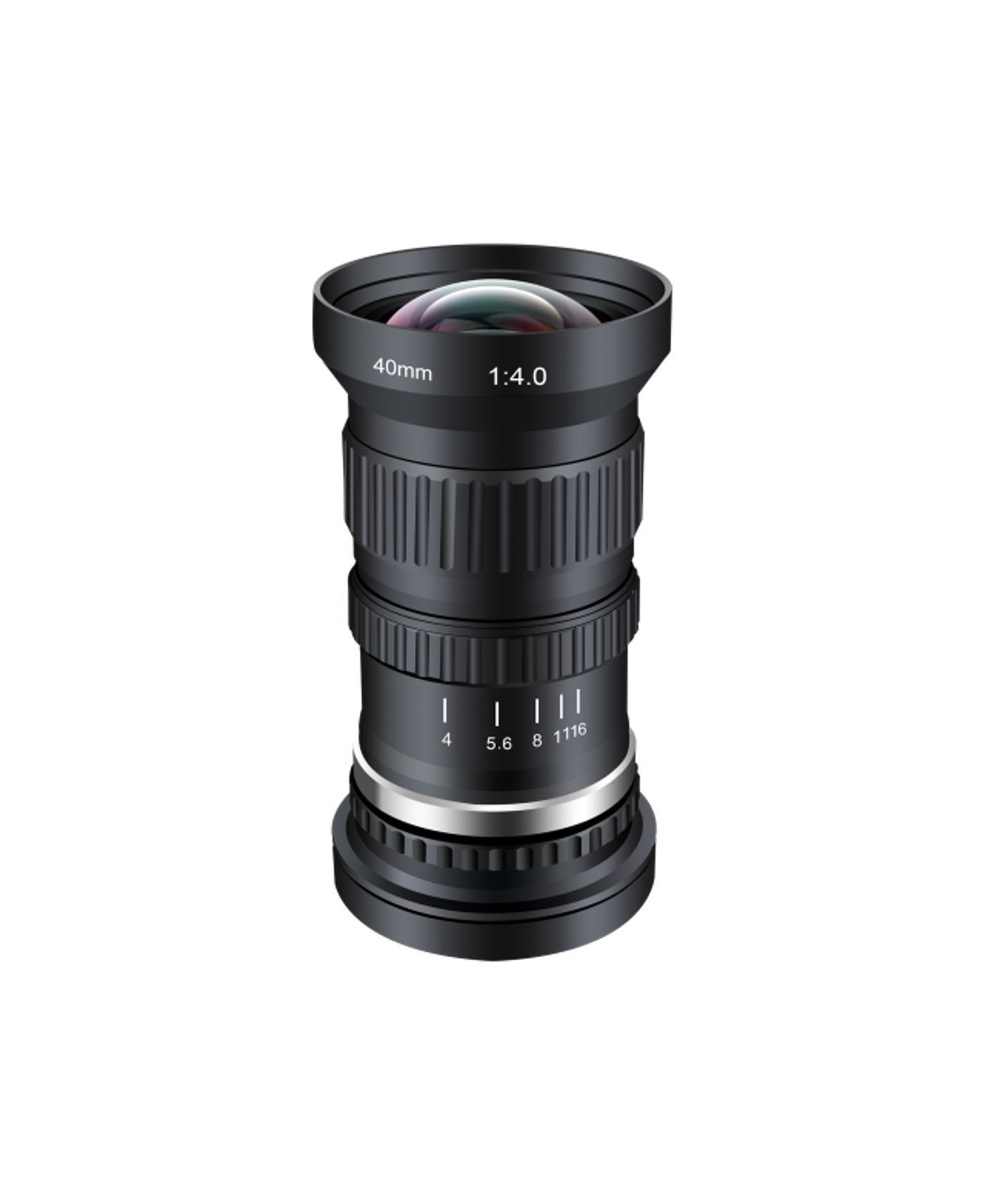

ELS-40/40M16K-0.15X 40mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
40 mmFocal Length
60mm(16k)Sensor Size
3.5um(16k)Resolving Power
M72×0.75Filter Thread
<0.1%Distortion
839gWeight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ELS-40/40M16K-0.15X.
- Weight839g
- Filter ThreadM72×0.75
Key Specifications
| Focal Length | 40 mm |
| Sensor Size | 60mm(16k) |
| Resolving Power | 3.5um(16k) |
| Filter Thread | M72×0.75 |
| Distortion | <0.1% |
| Weight | 839g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether ELS-40/40M16K-0.15X fits, or recommend a better match.
