AZURE-6540THLMD

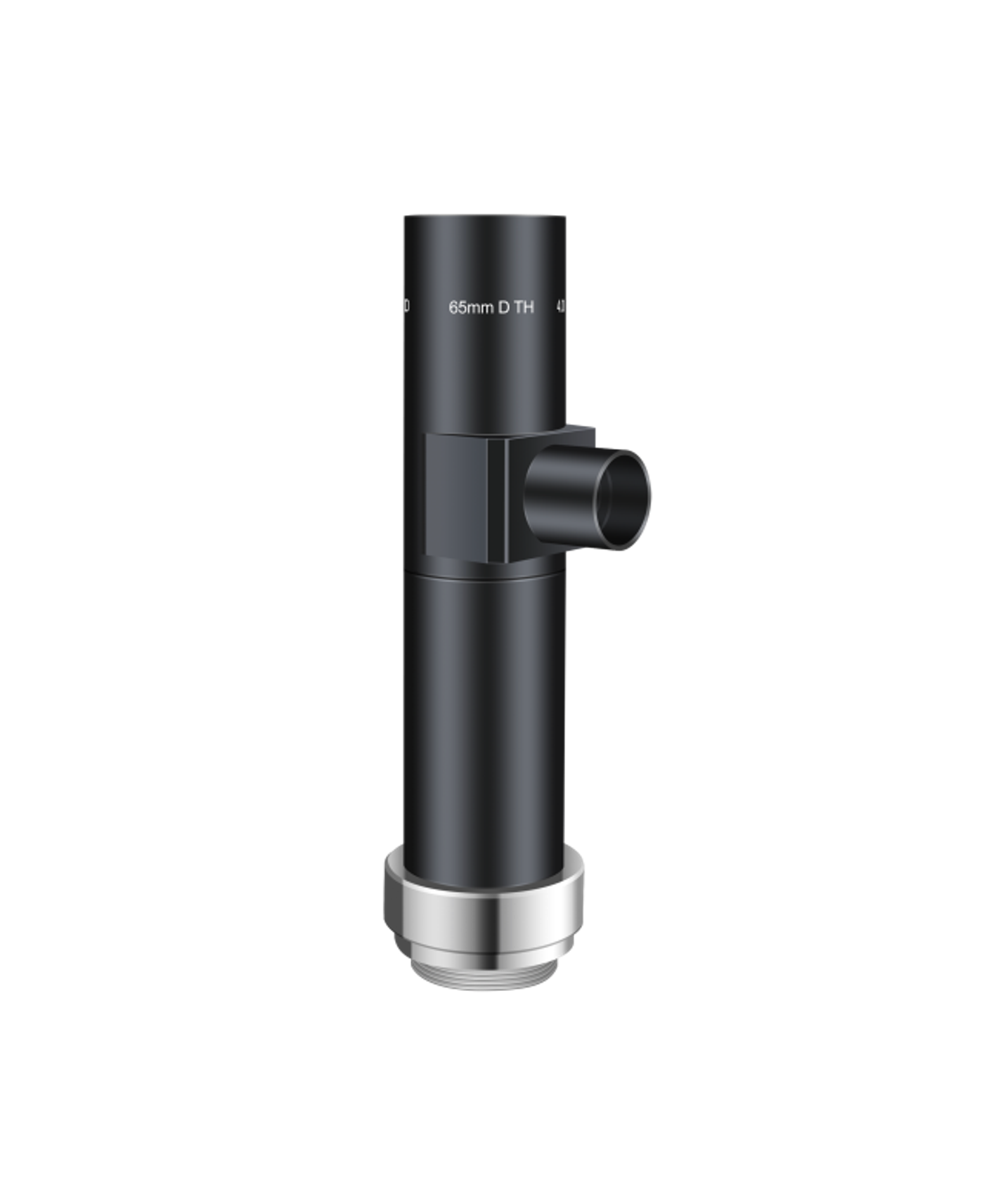

AZURE-6540THLMD Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
4.0XMagnification
1.1"Sensor Size
CMount
65mmWorking Distance
<-0.08%Distortion
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-6540THLMD.
- MountC
Key Specifications
| Magnification | 4.0X |
| Sensor Size | 1.1" |
| Mount | C |
| Working Distance | 65mm |
| Distortion | <-0.08% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-6540THLMD fits, or recommend a better match.
