SAM-TC20WD110-C11-SWIR

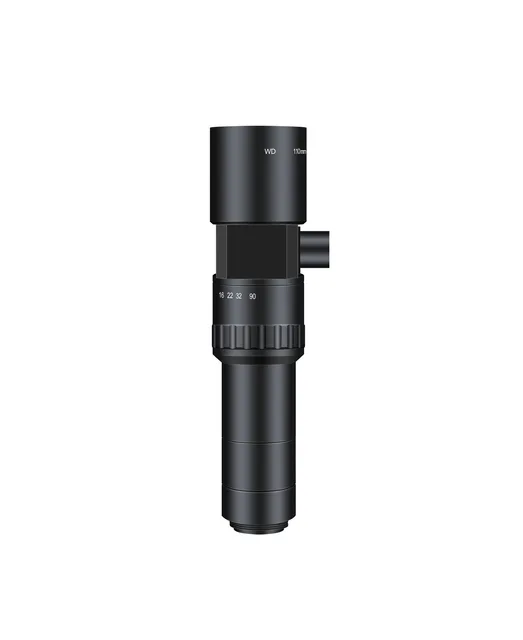

SAM-TC20WD110-C11-SWIR — 2.0X SWIR Telecentric Lens (WD 110 mm, 1.1", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
2.0XMagnification
1.1"Sensor Size
C-MountMount
8.3Effective Aperture
110 mmWorking Distance
0.17 mmDepth of Field
Dimensions
Mechanical dimensions

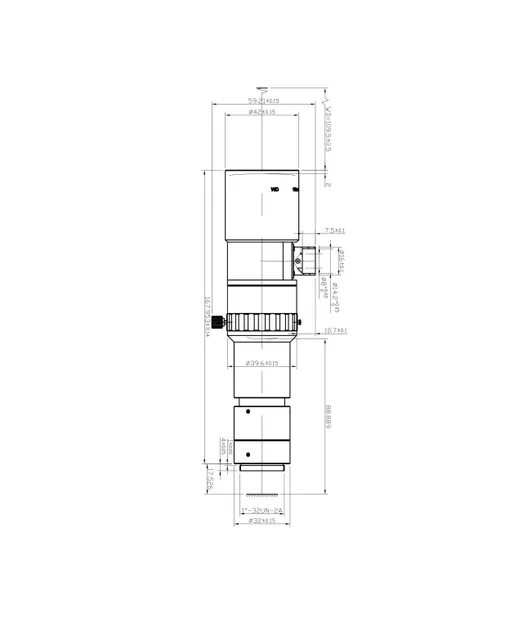

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ42 x 166.593 mm
- MountC-Mount
Product overview
SAM-TC20WD110-C11-SWIR (2.0X SWIR Telecentric Lens (WD 110 mm)) is listed in the Telecentric range. Catalogue values include 1.1" sensor, C-Mount, distortion <0.01%, WD 110 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 2.0X |
| Sensor Size | 1.1" |
| Mount | C-Mount |
| Effective Aperture | 8.3 |
| Working Distance | 110 mm |
| Depth of Field | 0.17 mm |
| Distortion | <0.01% |
| Dimensions | Φ42 x 166.593 mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether SAM-TC20WD110-C11-SWIR fits, or recommend a better match.
