G-MH11401B

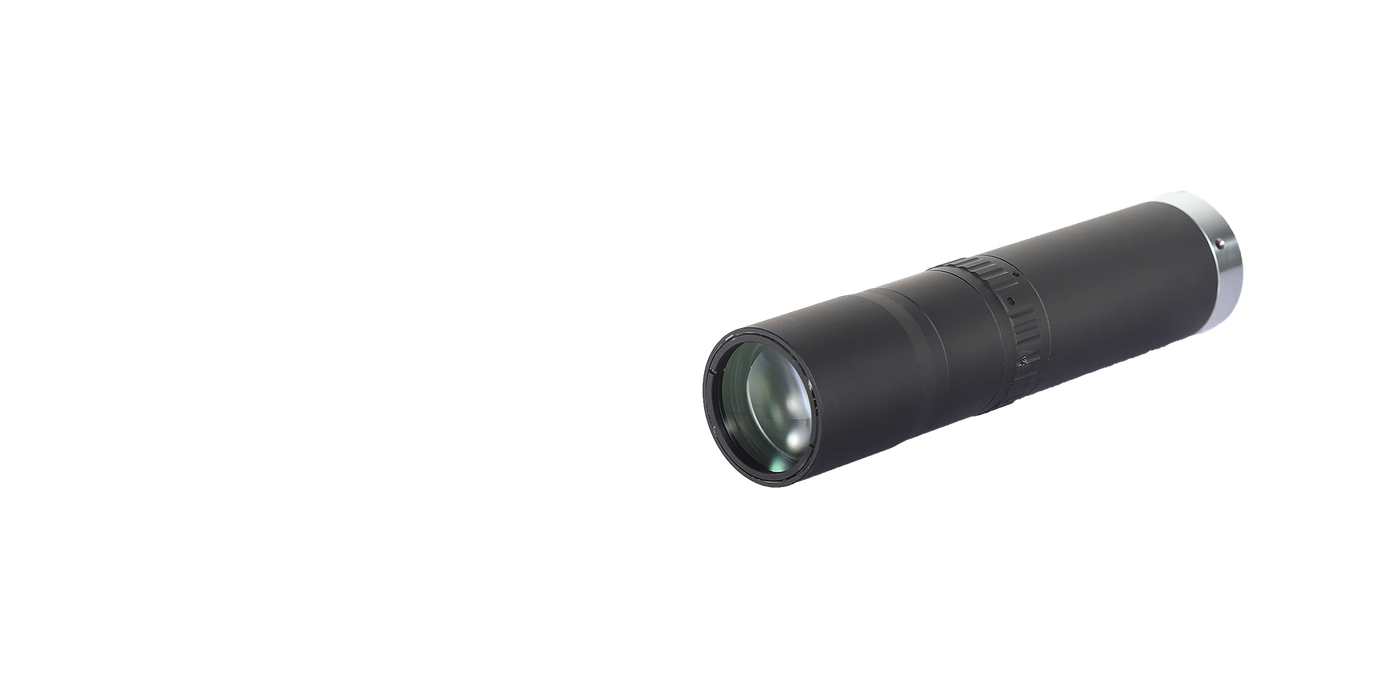

G-MH11401B Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
4Magnification
1.1”Sensor Size
2.87Resolving Power
C-MountMount
16.8-40Aperture
110Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of G-MH11401B.
- MountC-Mount
Key Specifications
| Magnification | 4 |
| Sensor Size | 1.1” |
| Resolving Power | 2.87 |
| Mount | C-Mount |
| Aperture | 16.8-40 |
| Working Distance | 110 |
| Field of View | 1.1"FOV(DxHxV) 4.4×3.5×2.5 |
| Distortion | <0.05% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
