MV11021A

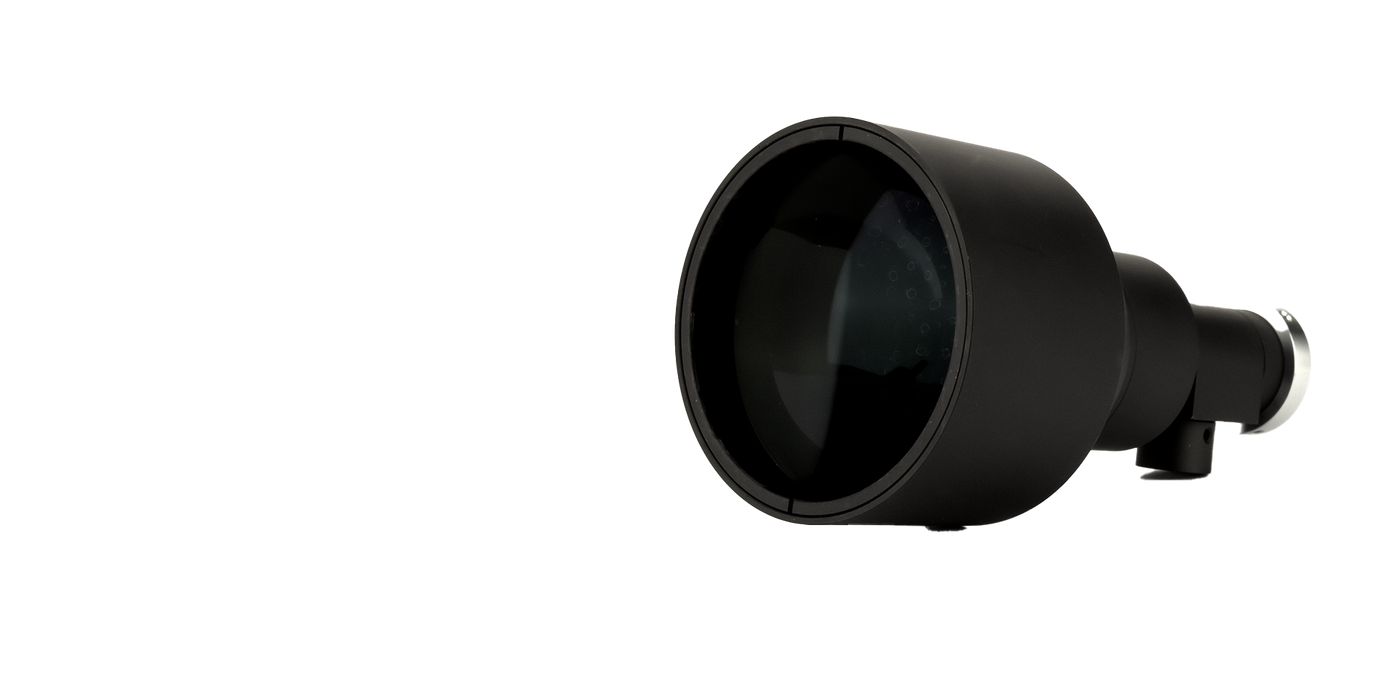

MV11021A Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
0.2Magnification
2/3”Sensor Size
27.96Resolving Power
C-MountMount
7.8Aperture
110Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MV11021A.
- Dimensionsφ70×138.21
- Weight351
- MountC-Mount
Key Specifications
| Magnification | 0.2 |
| Sensor Size | 2/3” |
| Resolving Power | 27.96 |
| Mount | C-Mount |
| Aperture | 7.8 |
| Working Distance | 110 |
| Field of View | 2/3"FOV(D×H×V) 55×44×33 |
| Distortion | <0.05% |
| Dimensions | φ70×138.21 |
| Weight | 351 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
