AZURE-DT6520M10MD

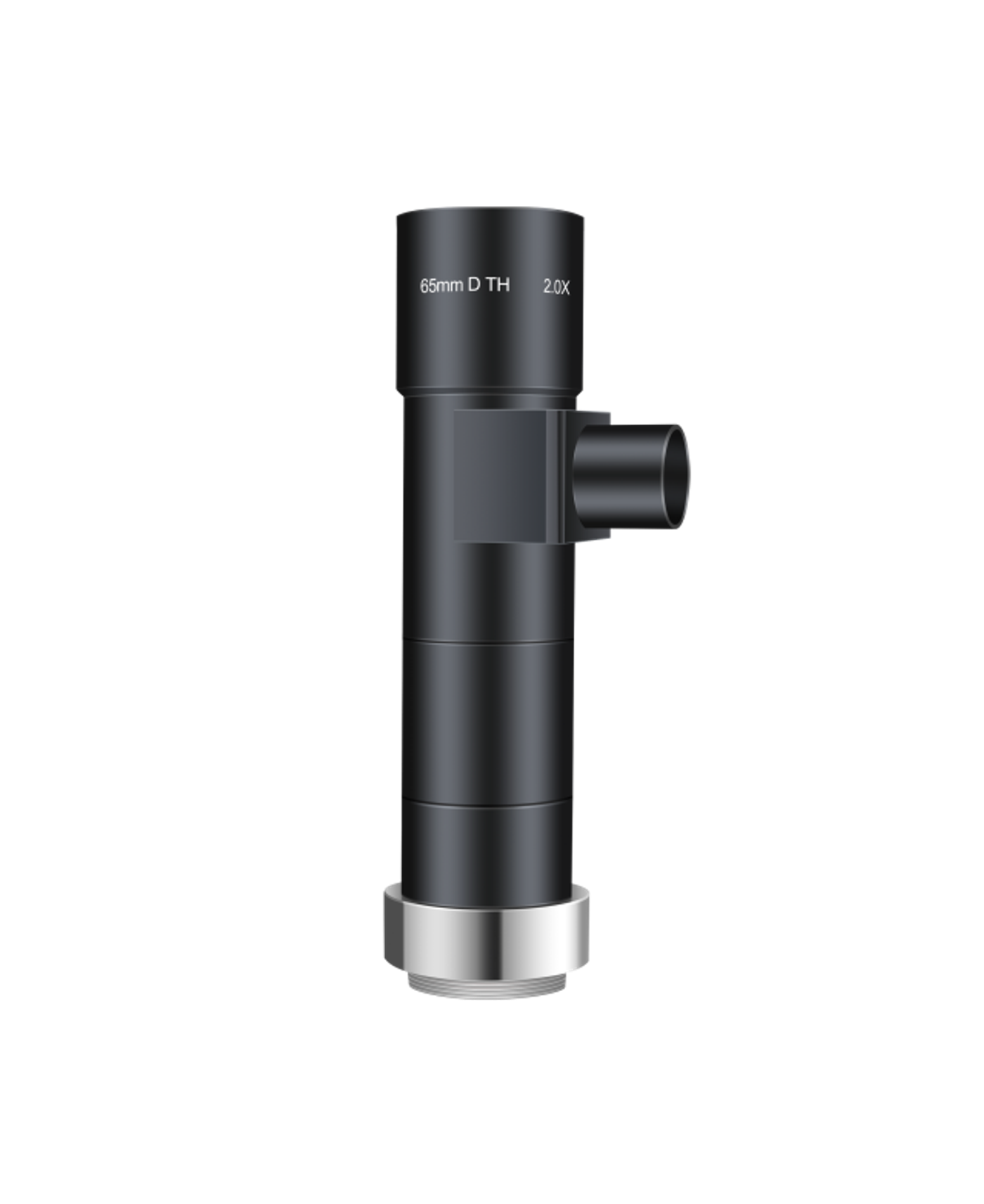

AZURE-DT6520M10MD Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
2.0XMagnification
1.1”(Diagonal 17mm)Sensor Size
CMount
8.88Aperture
65mmWorking Distance
2/3"靶面 5.5°×3.3°×4.4°; 1/2"靶面 4°×2.4°×3.2°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-DT6520M10MD.
- Weight-
- MountC
Key Specifications
| Magnification | 2.0X |
| Sensor Size | 1.1”(Diagonal 17mm) |
| Mount | C |
| Aperture | 8.88 |
| Working Distance | 65mm |
| Field of View | 2/3"靶面 5.5°×3.3°×4.4°; 1/2"靶面 4°×2.4°×3.2° |
| Distortion | <-0.027% |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
