AZURE-6560THLMD

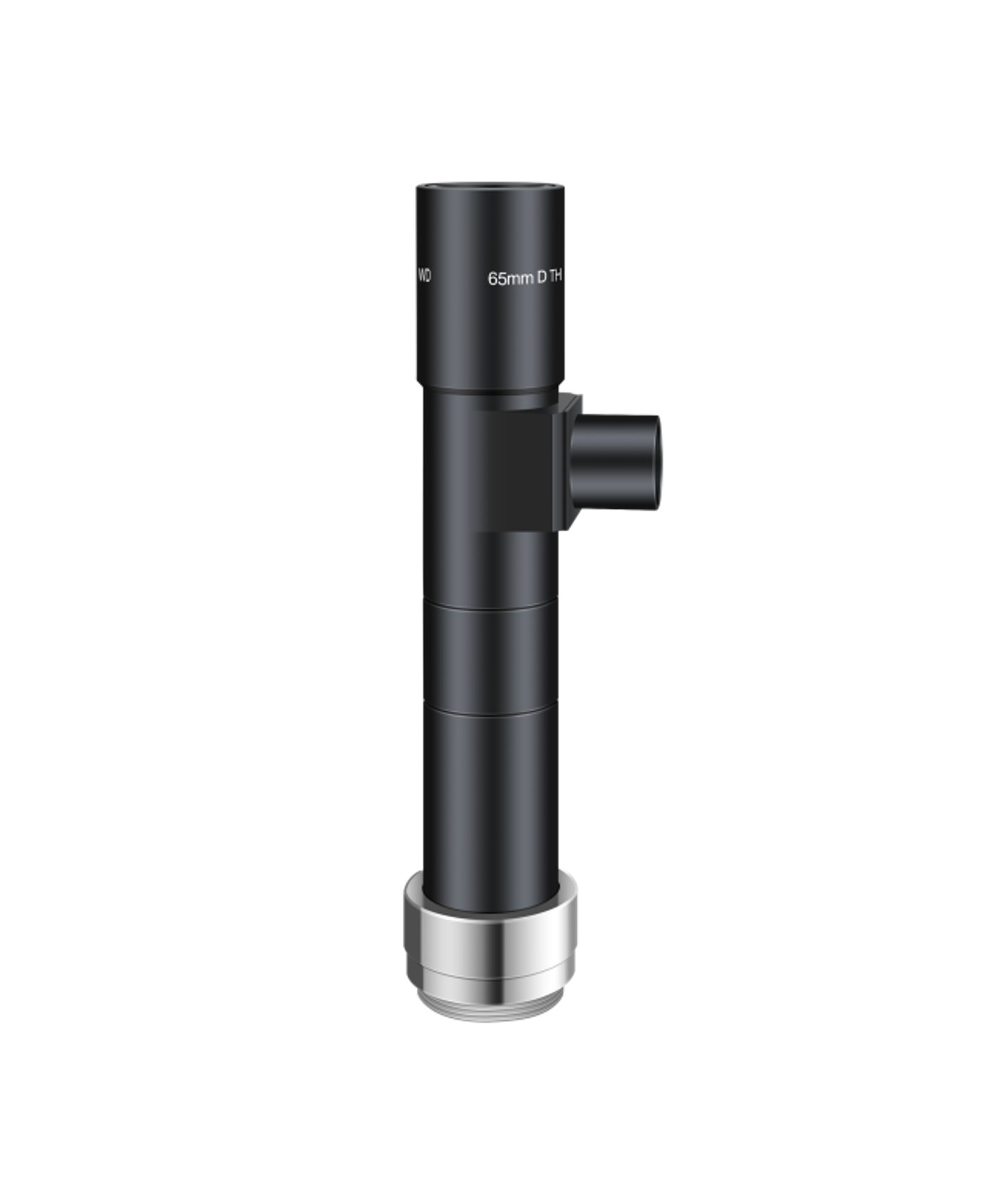

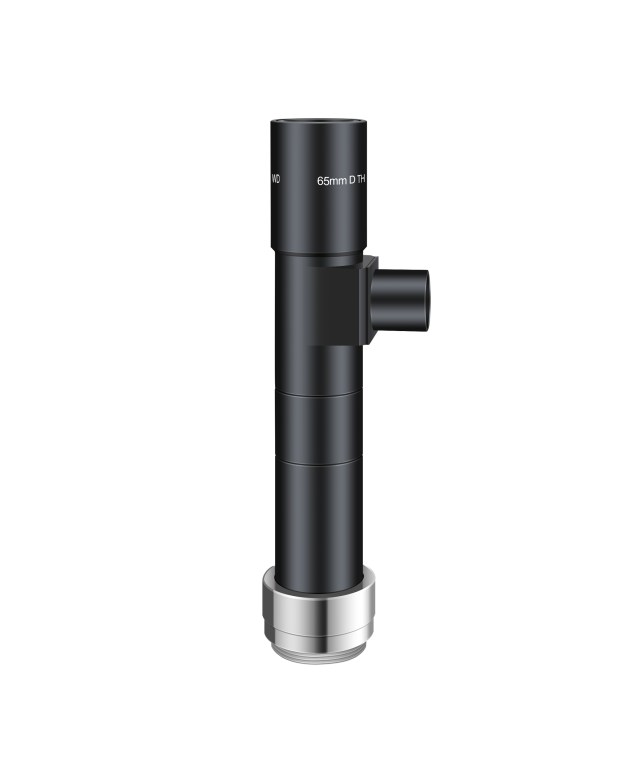

AZURE-6560THLMD Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
6.0XMagnification
1.1"（Diagonal 17.6mm）Sensor Size
CMount
26.6Aperture
65mmWorking Distance
2/3"靶面 1.83°×1.1°×1.47°; 1/2"靶面 1.33°×0.8°×1.07°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-6560THLMD.
- Weight-
- MountC
Key Specifications
| Magnification | 6.0X |
| Sensor Size | 1.1"（Diagonal 17.6mm） |
| Mount | C |
| Aperture | 26.6 |
| Working Distance | 65mm |
| Field of View | 2/3"靶面 1.83°×1.1°×1.47°; 1/2"靶面 1.33°×0.8°×1.07° |
| Distortion | <-0.03% |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
