AZURE-0513XTH

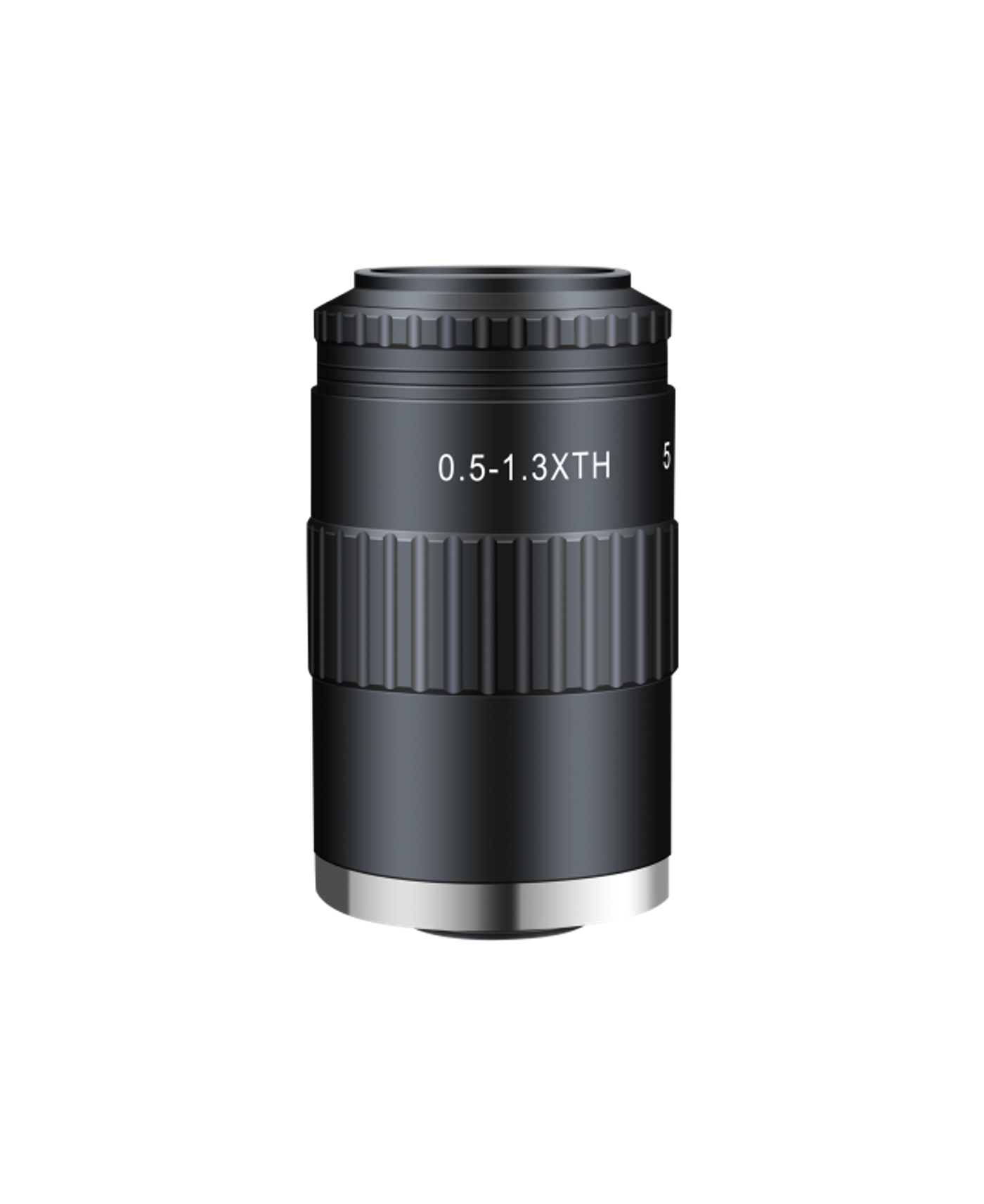

AZURE-0513XTH Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
2/3"Sensor Size
CMount
1/2"靶面 16°x9.6°×12.8°; 1/3"靶面 12°×7.2°×9.6°Field of View
349.5gWeight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0513XTH.
- Weight349.5g
- MountC
Key Specifications
| Sensor Size | 2/3" |
| Mount | C |
| Field of View | 1/2"靶面 16°x9.6°×12.8°; 1/3"靶面 12°×7.2°×9.6° |
| Weight | 349.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0513XTH fits, or recommend a better match.
