AZURE-11010TH10M

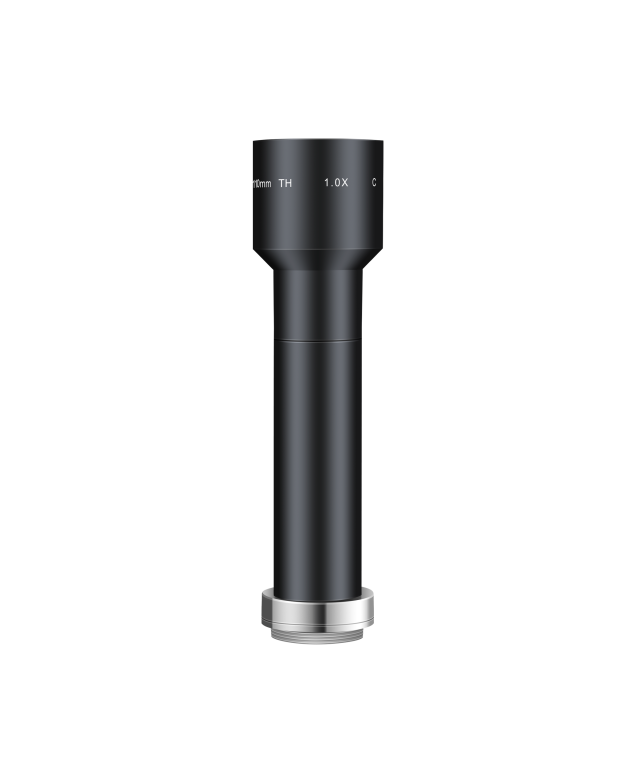

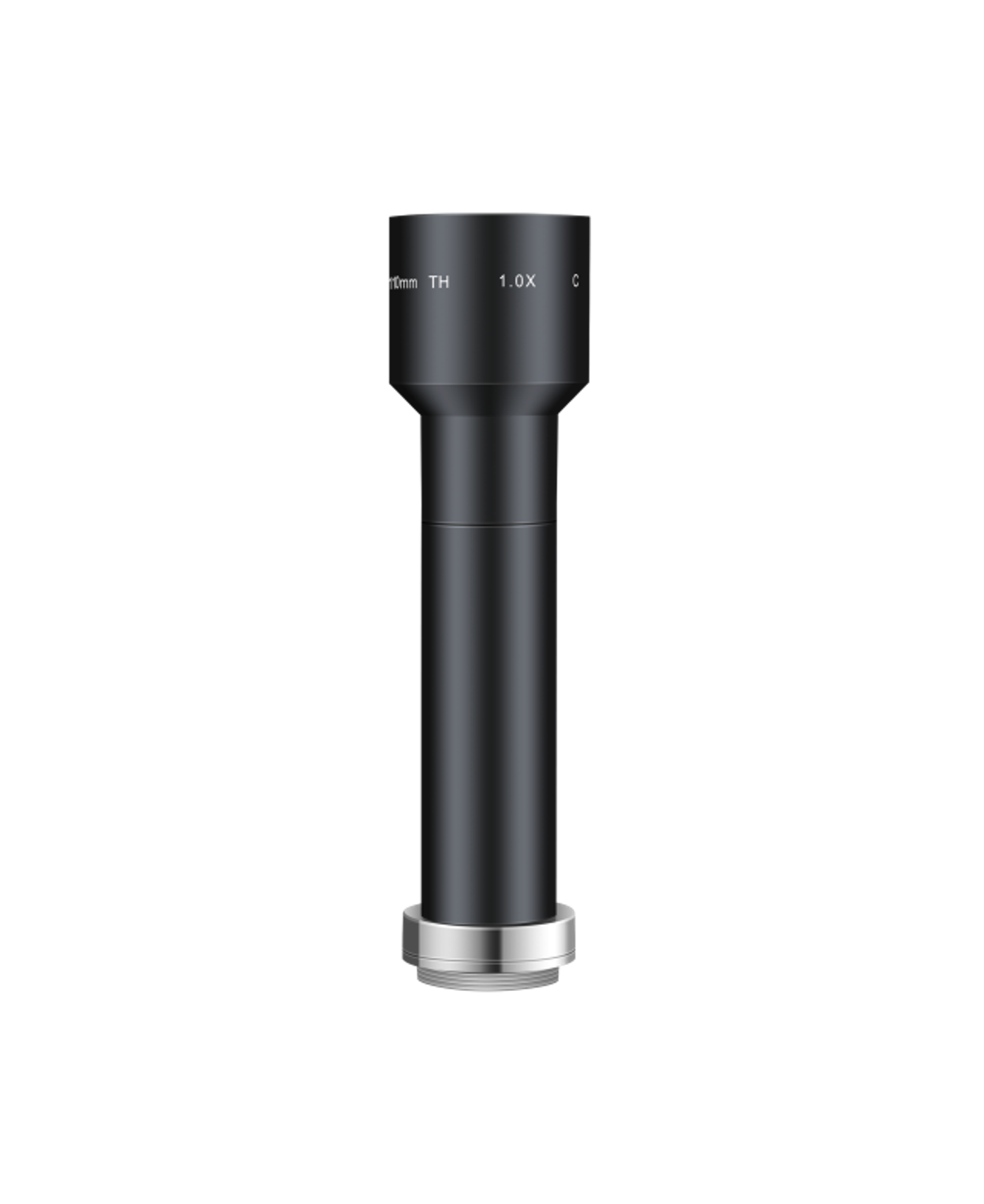

AZURE-11010TH10M Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
1.0XMagnification
1"Sensor Size
CMount
110mmWorking Distance
<0.01%Distortion
Φ35×128.7mmDimensions
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-11010TH10M.
- DimensionsΦ35×128.7mm
- MountC
Key Specifications
| Magnification | 1.0X |
| Sensor Size | 1" |
| Mount | C |
| Working Distance | 110mm |
| Distortion | <0.01% |
| Dimensions | Φ35×128.7mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-11010TH10M fits, or recommend a better match.
