SAM-TC15WD65-C1-HR
SAM-TC15WD65-C1-HR — 1.5X High Resolution Telecentric Lens (WD 65 mm, 1", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
1.5XMagnification
1"Sensor Size
C-MountMount
7.5Effective Aperture
65 mmWorking Distance
0.11 mmDepth of Field
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions

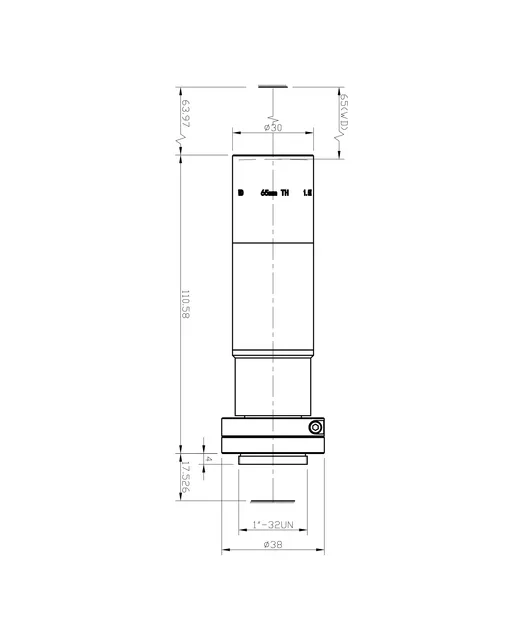

Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of SAM-TC15WD65-C1-HR.
- MountC-Mount
Product overview
SAM-TC15WD65-C1-HR (1.5X High Resolution Telecentric Lens (WD 65 mm)) is listed in the Telecentric range. Catalogue values include 1" sensor, C-Mount, distortion <0.1%, WD 65 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 1.5X |
| Sensor Size | 1" |
| Mount | C-Mount |
| Effective Aperture | 7.5 |
| Working Distance | 65 mm |
| Depth of Field | 0.11 mm |
| Distortion | <0.1% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
