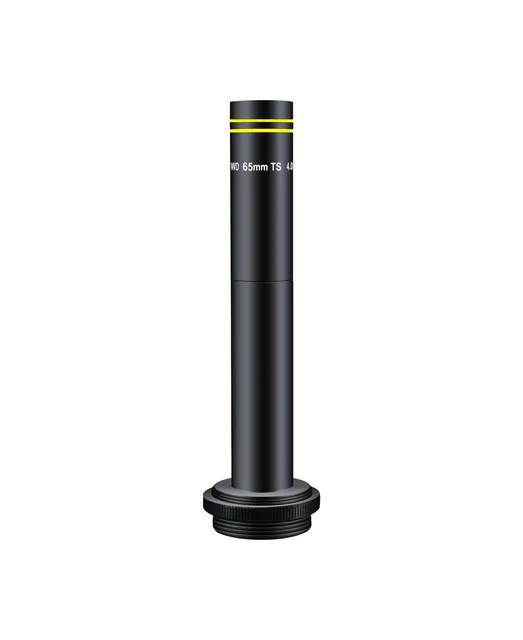

SAM-TC40WD65-C2 — 4.0X Telecentric Lens (WD 65 mm, 1/2", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
4.0XMagnification
1/2"Sensor Size
C-MountMount
27.4Effective Aperture
65 mmWorking Distance
0.14 mmDepth of Field
Dimensions
Mechanical dimensions

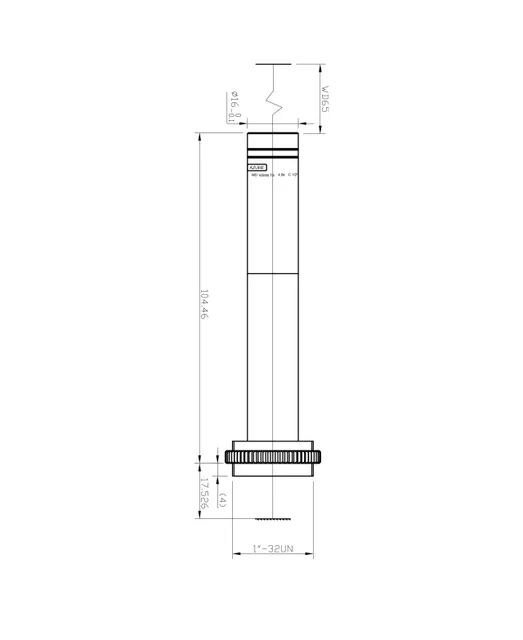

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ16 x 104.46 mm
- Weight63 g
- MountC-Mount
Product overview
SAM-TC40WD65-C2 (4.0X Telecentric Lens (WD 65 mm)) is listed in the Telecentric range. Catalogue values include 1/2" sensor, C-Mount, distortion <0.003 %, WD 65 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 4.0X |
| Sensor Size | 1/2" |
| Mount | C-Mount |
| Effective Aperture | 27.4 |
| Working Distance | 65 mm |
| Depth of Field | 0.14 mm |
| Distortion | <0.003 % |
| Dimensions | Φ16 x 104.46 mm |
| Weight | 63 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
