AZURE-4020THM

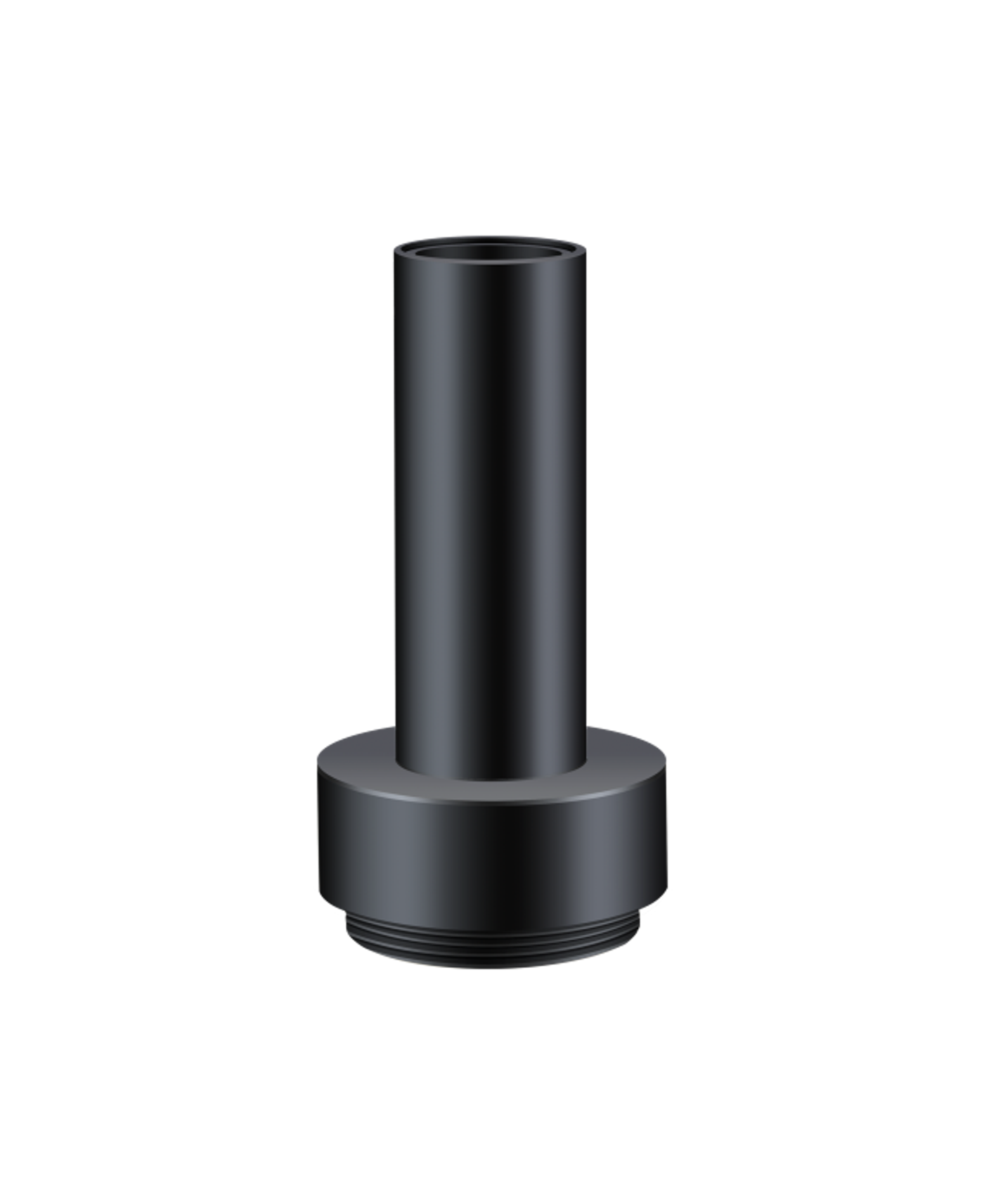

AZURE-4020THM Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
2XMagnification
1/2"Sensor Size
CMount
40mmWorking Distance
<0.1%Distortion
Φ30x55mmDimensions
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-4020THM.
- DimensionsΦ30x55mm
- Weight38g
- MountC
Key Specifications
| Magnification | 2X |
| Sensor Size | 1/2" |
| Mount | C |
| Working Distance | 40mm |
| Distortion | <0.1% |
| Dimensions | Φ30x55mm |
| Weight | 38g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-4020THM fits, or recommend a better match.
