SAM-TC3.3WD60-C2

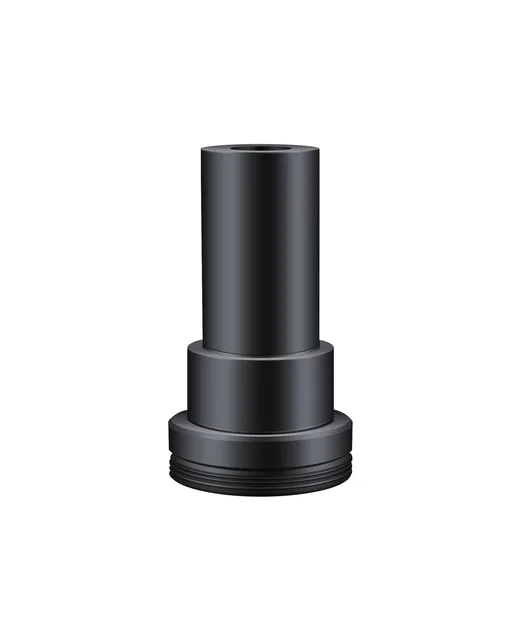

SAM-TC3.3WD60-C2 — 0.33X Telecentric Lens (WD 60 mm, 1/2", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
0.33XMagnification
1/2"Sensor Size
C-MountMount
8.22Effective Aperture
60 mmWorking Distance
6 mmDepth of Field
Dimensions
Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ20 x 30.98mиn
- MountC-Mount
Product overview
SAM-TC3.3WD60-C2 (0.33X Telecentric Lens (WD 60 mm)) is listed in the Telecentric range. Catalogue values include 1/2" sensor, C-Mount, distortion <-0.014 %, WD 60 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 0.33X |
| Sensor Size | 1/2" |
| Mount | C-Mount |
| Effective Aperture | 8.22 |
| Working Distance | 60 mm |
| Depth of Field | 6 mm |
| Distortion | <-0.014 % |
| Dimensions | Φ20 x 30.98mиn |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether SAM-TC3.3WD60-C2 fits, or recommend a better match.
