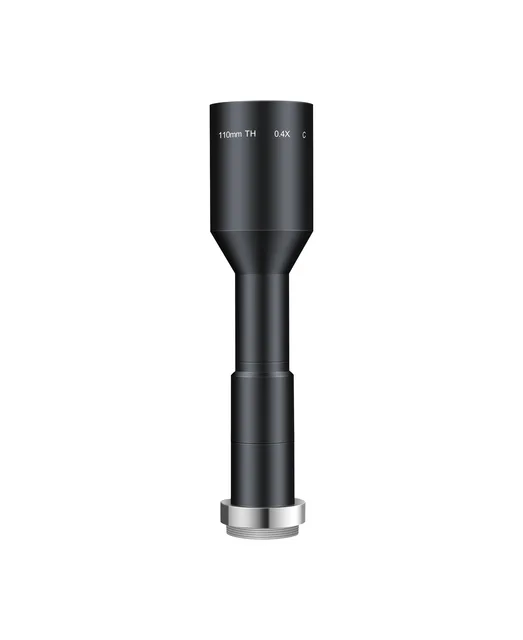

SAM-TC04WD110-C23-HR — 0.4X High Resolution Telecentric Lens (WD 110 mm, 2/3", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
0.4XMagnification
2/3"Sensor Size
C-MountMount
6.6Effective Aperture
110 mmWorking Distance
3.2 mmDepth of Field
Dimensions
Mechanical dimensions

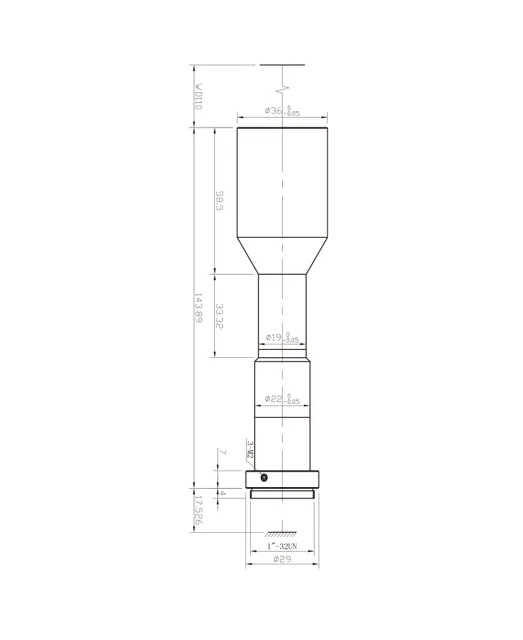

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ36 x 143.89 mm
- MountC-Mount
Product overview
SAM-TC04WD110-C23-HR (0.4X High Resolution Telecentric Lens (WD 110 mm)) is listed in the Telecentric range. Catalogue values include 2/3" sensor, C-Mount, distortion <0.01%, WD 110 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 0.4X |
| Sensor Size | 2/3" |
| Mount | C-Mount |
| Effective Aperture | 6.6 |
| Working Distance | 110 mm |
| Depth of Field | 3.2 mm |
| Distortion | <0.01% |
| Dimensions | Φ36 x 143.89 mm |
