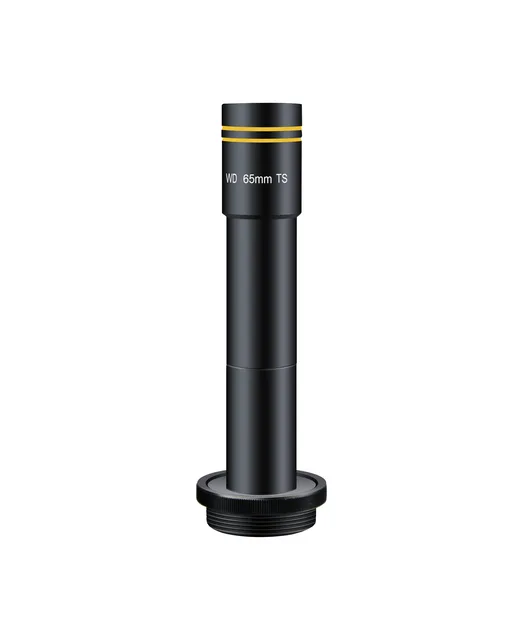

SAM-TC08WD65-C2 — 0.8X Telecentric Lens (WD 65 mm, 1/2", C-Mount)
Bi-telecentric optics for dimensional measurement with no perspective error.
0.8XMagnification
1/2"Sensor Size
C-MountMount
14.9Effective Aperture
65 mmWorking Distance
1.8 mmDepth of Field
Dimensions

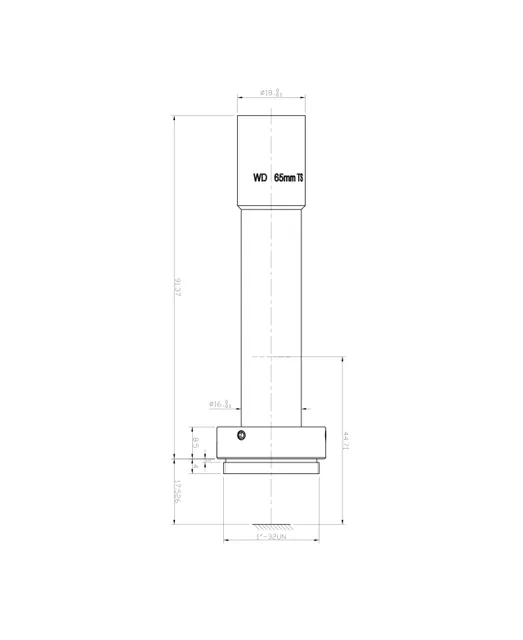

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ18 x 91.37 mm
- Weight60 g
- MountC-Mount
Product overview
SAM-TC08WD65-C2 (0.8X Telecentric Lens (WD 65 mm)) is listed in the Telecentric range. Catalogue values include 1/2" sensor, C-Mount, distortion <0.03 %, WD 65 mm.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 0.8X |
| Sensor Size | 1/2" |
| Mount | C-Mount |
| Effective Aperture | 14.9 |
| Working Distance | 65 mm |
| Depth of Field | 1.8 mm |
| Distortion | <0.03 % |
| Dimensions | Φ18 x 91.37 mm |
| Weight | 60 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
